TZ6510 Dual-core Jaw Crusher

Sub-Category

Mining Machinery

Completed orders

Price

$25000.00

Delivery Cost

$10000.00

Minimum Order

1 pieces

Location

No.43 Tangkou Road, Economic Development Zone, Feixi County, , ,

Order

Ask about Product Send Buying Lead

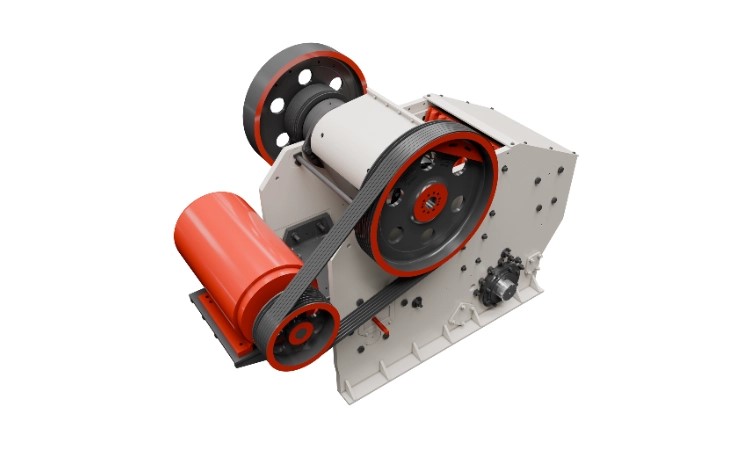

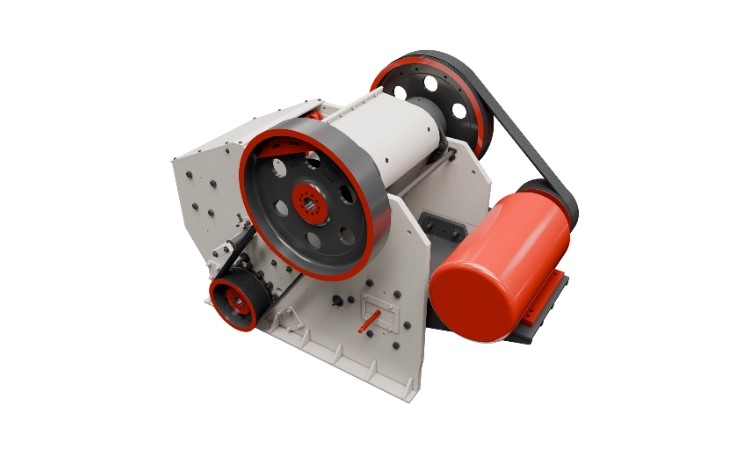

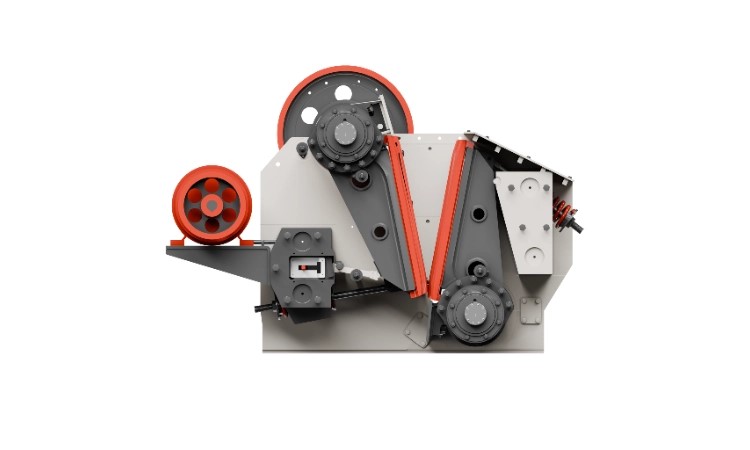

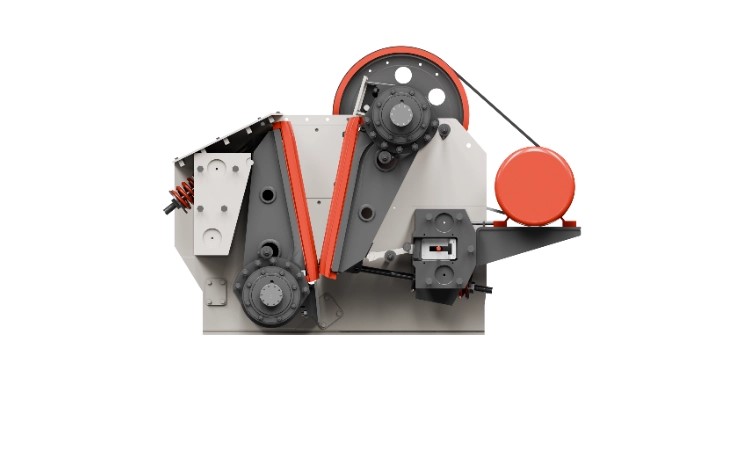

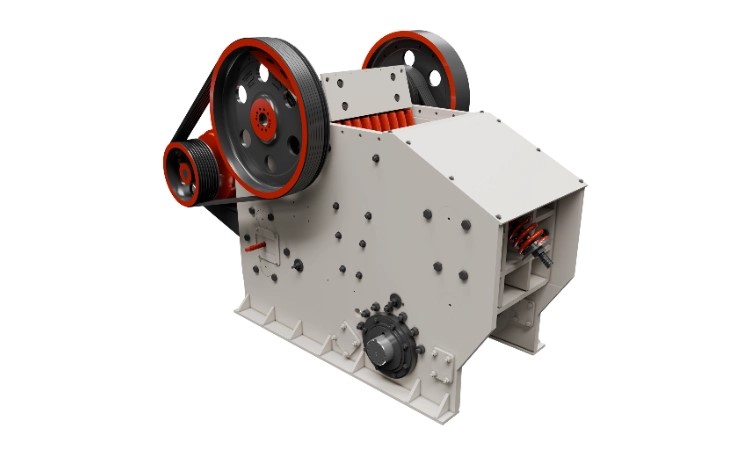

Suhman TZ‑6510 dual-core jaw crusher features a unique dual‑core design with two synchronized movable jaws arranged symmetrically in a V‑shaped crushing chamber. This structure ensures continuous and thorough crushing throughout the chamber, extending the crushing stroke and increasing force at the discharge end—a key solution to structural limitations common in conventional jaw crushers.

It is ideal for mining operations, quarry setups, infrastructure projects (roads, bridges, tunnels), and demolition recycling plants. Its reinforced jaw plates and reliable mechanical drive allow continuous, high-capacity crushing in demanding environments, while its modularity simplifies maintenance and jobsite deployment.

Product Parameter

Inlet size: 650×1000 (mm)
Discharge port size: 65~185 (mm)
Motor: 132kw, 8-pole motor.
Eccentric shaft speed: 300 revolutions per minute
Capacity: 80-300 tons/hour

Whole machine weight (excluding motor): 12 tons

Overall dimensions (length x width x height): 3583x1964x2536 (mm)

TZ6510 Dual-core Jaw Crusher can directly crushing 500mm raw materials to 40mm, achieve a production capacity of nearly 100 tons per hour.
