2 Station HV Inclined Plane Tracking and Erosion Test Equipment for Insulating Materials

2 Station HV Inclined Plane Tracking and Erosion Test Equipment for Insulating Materials - Without PC Datalogging

Sub-Category

Other Electronic Components

Completed orders

Price

$9975.00

Delivery Cost

$0.00

Minimum Order

1 pieces

Location

Phase - II MIDC , Dombivli ( E),, Thane, Maharashtra, India

Order

Ask about Product Send Buying Lead

The equipment covers the evaluation of the relative tracking and erosion resistance of insulating solids using the liquid contaminant designed as per standard ASTM D2303 Tests included : • Time to track method • Initial tracking voltage • Erosion test Different models such as Single station, 2 Stations, 5 Stations are available.

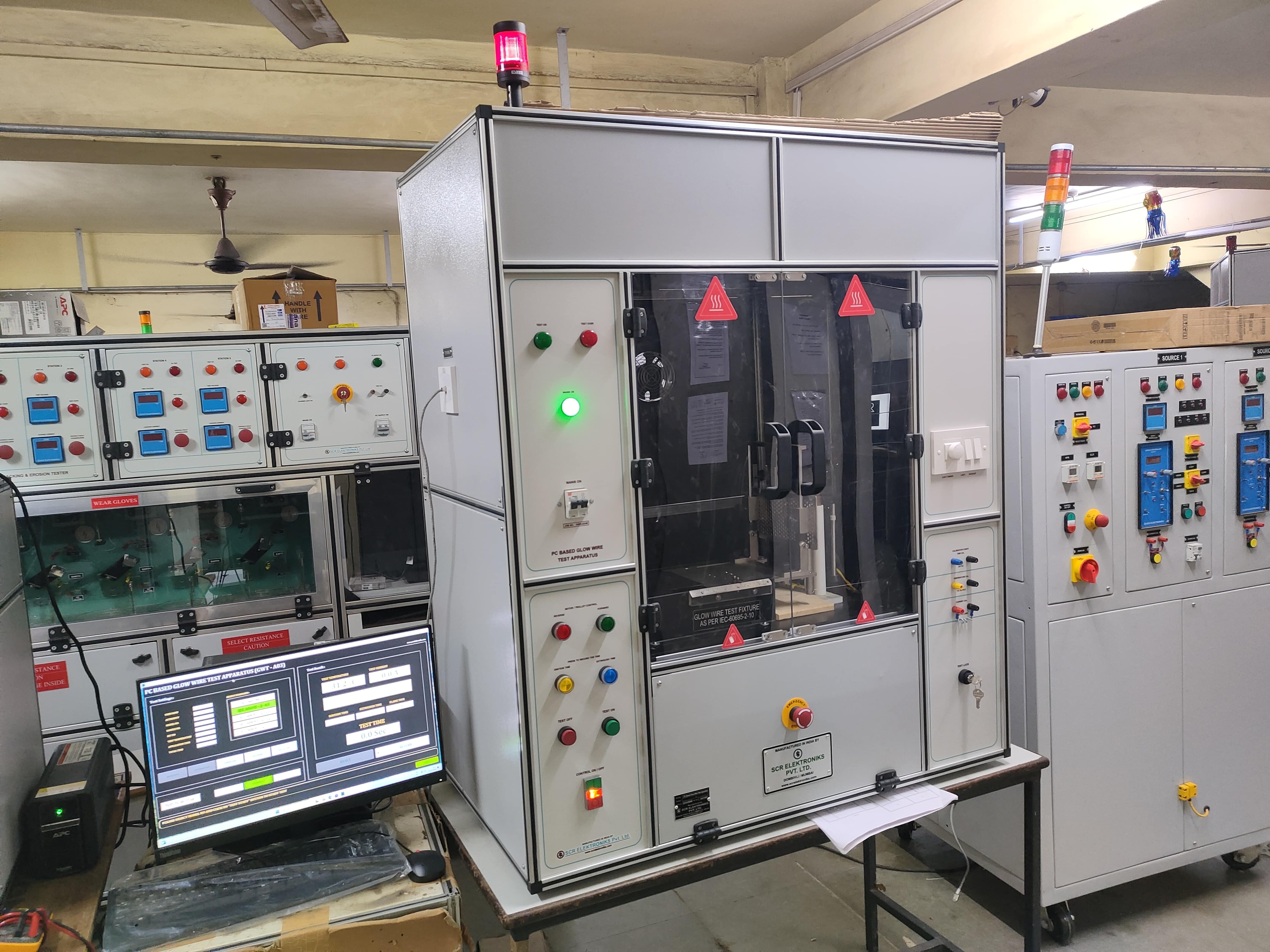

Two Stations High Voltage Inclined Plane Tracking and Erosion Tester - Without PC Data logging

Features :

1. Micro controller based programmable logic controller to carry out test sequence having 20 *4 LCD and membrane keypad for display of set test parameters and test status.

2. Specially designed electrodes as per product under test

3. Lighting arrangement in test chamber

Specifications:

1. Input supply : 1 phase 230 V AC, 50hz

2. Output voltage : Regulated 100 V to 7500V, @100mA AC programmable.

3. Series ballast selection – 1k, 10k,20k and 50k with link – 2 Sets.

4. Tripping current setting : 60 mA

5. Electrode system : Stainless still material – 2 Sets.

6. Angle of inclination : 45 deg.

7. Fixture arrangement: Made for flat test specimen as well as for various sizes of cable – 2 Sets.

8. Liquid deliver capacity: 0.075 ml/min to 0.900 ml/min, Programmable

9. Test chamber : UV protected Glass door with door interlock.

10.Enclosure : Built with aluminum profile and MS covers with powder coating.

11. Test Chamber : 60cm X 40cm X 31.5cm (L X H X D)
