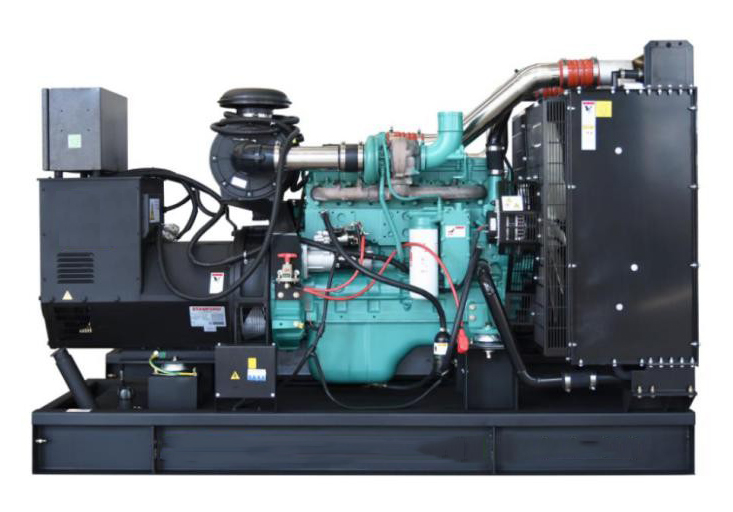

Genset Model: XP-C275D

Prime Power: 250 kVA

Standby Power: 275 kVA

Voltage: 380V/400V/415/440V

Frequency: 50Hz

Overall Dimensions: 2610×1000×1850 mm

Weight: 2060 kg

Engine Specification

Manufacturer / Model     DCEC Cummins 6LTAA8.9-G2

Air intake system    Turbo, Air/Air Cooling

Fuel system     P7100 type fuel pump

Cylinder arrangement     6 in line

Displacement  8.9L

Bore and stroke       114*145（mm）

Compression ratio   16.6:1

Rated speed     1500rpm

Max. Standby power at rated speed        240KW/322HP

Governor type Electronic

Fuel consumption @ 100% (Prime Power) Load  197 g/kWh      52L/h

Fuel consumption @ 75% (Prime Power) Load     197 g/kWh      39L/h

Fuel consumption @ 50% (Prime Power) Load     201 g/kWh      27L/h

Alternator Specification (Stamford UCDI274K1)

Number of Phase    3

Connecting Type     3 Phase and 4 Wires, Y type connecting

Number of Bearing 1

Power Factor   0.8

Protection Class      IP23

Altitude   ≤1000m

Exciter Type    Brushless exciting

Insulation Class/Temperature Rise H/H

Telephone Influence Factor (TIF)  ＜50

THF ＜2%
