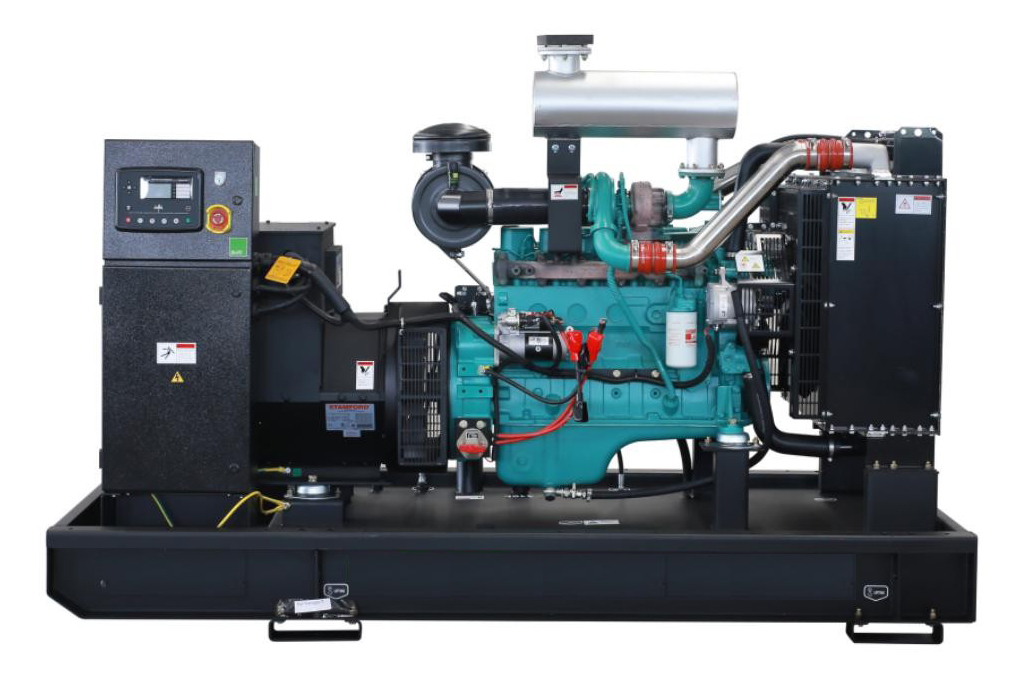

Genset Model: XP-C142

Prime Power: 130 kVA

Standby Power: 142 kVA

Voltage: 380V/400V/415/440V

Frequency: 50Hz

Overall Dimensions: 2400×900×1700 mm

Weight: 1360 kg

Engine Specification

Manufacturer / Model DCEC Cummins 6BTAA5.9-G2

Air intake system Turbo, Air/Air Cooling

Fuel system PB type fuel pump

Cylinder arrangement 6 in line

Displacement 5.9L

Bore and stroke 102*120（mm）

Compression ratio 17.3:1

Rated speed 1500rpm

Max. Standby power at rated speed 130KW/174HP

Governor type Electronic

Fuel consumption @ 100% (Prime Power) Load 208 g/kWh 28.9 L/h

Fuel consumption @ 75% (Prime Power) Load 207 g/kWh 21.7 L/h

Fuel consumption @ 50% (Prime Power) Load 214 g/kWh 15.3 L/h

Alternator Specification (Stamford UCI274E1)

Number of Phase 3

Connecting Type 3 Phase and 4 Wires, Y type connecting

Number of Bearing 1

Power Factor 0.8

Protection Class IP23

Altitude ≤1000m

Exciter Type Brushless exciting

Insulation Class/Temperature Rise H/H

Telephone Influence Factor (TIF) ＜50

THF ＜2%
