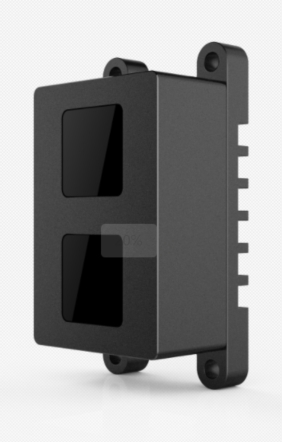

Based on Time-of-Flight(ToF)principle,integrating precise infrared lenses and laserillumination system,Hypersen 3D solid-state LiDAR can produce 3D point cloud data by just one shot and canachieve real-time transmission through high-speed communication interfaces. HPS-3D LiDAR sensors integrate high-power 850nm infrared VCSELemitters and high-photosensitive CMOS.In terms of the software,these LiDAR sensors can achieve stablemeasurement and simultaneous data output with embedded high-performance processor,advanced data processing,filtering and compensation algorithms.Regarding the hardware,100%solid-state structure,IP67 protection design and the aviation aluminum housing enablethem to be used in a variety of complex environments.

HPS-3D160 Pro can find obstacles around 8m with the accuracy of ±2cm; while the latter one has a shorter measuring range (±5cm) but with a higher accuracy of ±1cm.

Features:

• Measuring range: 0.25-8m
• Large Field of view: 76°*32°; 68°*55°
• Various communication interfaces: LAN, USB, RS232
• High resolution: 160*60; 640*480
• High accuracy (±2cm; ±1cm)
• Low temperature drift
• Client software and SDK

Applications:

• AGV/Robot Obstacle avoidance
• 3D recognition
• Volume mesurement
• People counting
• Safe working area protection

Delivery time:

Within 5 business days after receiving the payment

Warranty:

Long life after-sales service and technical support

Carrier:

FedEx,DHLor others as you appoint

Product Warranty Policy

This product undergoes strict factory inspection. In case of malfunction, please contact the original manufacturer and provide detailed information about the fault.

1.Warranty Period

The warranty period is one year, starting from the date when the buyer receives the product.

2.Scope of Warranty

1) If a natural malfunction occurs within the warranty period, we will repair the product free of charge. However, the following situations are not covered by the warranty:

l Malfunctions caused by incorrect operation or improper use under conditions or environments not specified in the operation manual, user manual, or technical requirements specially agreed upon between the buyer and our company.

l Malfunctions not caused by product defects but by the buyer's equipment or software design.

l Malfunctions resulting from modifications, repairs, or disassembly performed by personnel other than the original manufacturer.

l Malfunctions that could have been completely avoided by following the provisions in the operation manual or user manual, such as proper maintenance or replacement of wearing parts.

l Malfunctions caused by factors such as unforeseeable changes in scientific and technological levels after the product is shipped.

l Malfunctions caused by natural disasters (e.g., fire, earthquake, flood) or external factors (e.g., abnormal voltage), for which our company shall not be responsible for warranty services.

2) Our company shall not be liable for any indirect losses (such as equipment damage, loss of opportunity, loss of profit, etc.) or other losses incurred by the buyer due to the malfunction of our equipment.
