3535 WHITE LEDs

Sub-Category

Active Components

Completed orders

Price

$0.50

Delivery Cost

$1.00

Minimum Order

10000 pieces

Location

No. 39, Wanjiang Section, Wanjiang Street, Dongguan Street, Guangdong, China. Postcode 523800, , ,

Order

Ask about Product Send Buying Lead

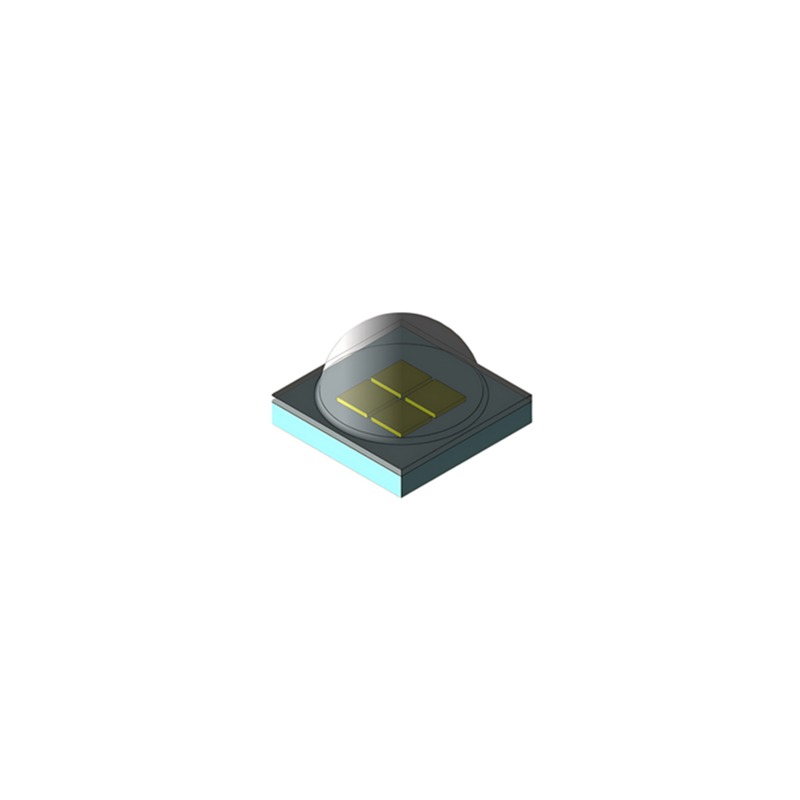

3535 LEDs | 3535 WHITE LEDs | SMD CERAMICS LEDs Type: 3535 Ceramics LEDs Size: 3.5mm x 3.5mm Power: 3-10W Voltage: 3-12V Color: white CCT: 2700K-7600K Current: 700-1500mA Efficiency: 120-230 lm/w CRI: 80 ↑ Packaging substrate: ceramic alumina eutectic Chip material: GaN / InGaN Chip brand: Bridgelux,Toyota,Osram,Epistar,Sanan. Chip specifications: size 45-55mil, etc.; Divergence angle: 120° Certification standards: ROHS, REACH, EN60471. Working temperature: -40°C to +85°C

3535 LEDs | 3535 WHITE LEDs | SMD CERAMICS LEDs

Product performance of Queendom LEDs at 350ma and 1000mAtest current, Tj=25°C

PRODUCT	RANK	NOMINAL	CRI	FLUX (lm)		VOLTAGE (Vf)		EFFICACY	TYPICAL	TEST	PART NUMBER
PRODUCT	RANK	CCT/K	[2] Ra	MIN	MAX	MIN	MAX	(lm/W)	2Ө 1/2	(mA)	PART NUMBER
HP3535WY2WE	HP0101	2700K	80	100	160	2.8	3.2	130	120	300	8541401000HP0101
HP3535WV2WE	HP0102	3000K	80	100	160	2.8	3.2	130	120	300	8541401000HP0102
HP3535WU2WE	HP0103	3500K	80	100	160	2.8	3.2	130	120	300	8541401000HP0103
HP3535WT2WE	HP0104	4000K	80	100	160	2.8	3.2	130	120	300	8541401000HP0104
HP3535WR2WE	HP0105	5000K	80	100	160	2.8	3.2	130	120	300	8541401000HP0105
HP3535WQ2WE	HP0106	5700K	80	100	160	2.8	3.2	130	120	300	8541401000HP0106
HP3535WP2WE	HP0107	6500K	80	100	160	2.8	3.2	130	120	300	8541401000HP0107
HP3535WD2WE	HP0108	7600K	80	100	160	2.8	3.2	130	120	300	8541401000HP0108
HP3535WY2WF	HP0109	2700K	80	190	240	2.8	3.2	130	120	700	8541401000HP0109
HP3535WV2WF	HP0110	3000K	80	190	240	2.8	3.2	130	120	700	8541401000HP0110
HP3535WU2WF	HP0111	3500K	80	190	240	2.8	3.2	130	120	700	8541401000HP0111
HP3535WT2WF	HP0112	4000K	80	190	240	2.8	3.2	130	120	700	8541401000HP0112
HP3535WR2WF	HP0113	5000K	80	190	240	2.8	3.2	130	120	700	8541401000HP0113
HP3535WQ2WF	HP0114	5700K	80	190	240	2.8	3.2	130	120	700	8541401000HP0114
HP3535WP2WF	HP0115	6500K	80	190	240	2.8	3.2	130	120	700	8541401000HP0115
HP3535WD2WF	HP0116	7600K	80	190	240	2.8	3.2	130	120	700	8541401000HP0116
HP3535WY2WG	HP0117	2700K	80	210	430	2.8	3.2	130	120	1000	8541401000HP0117
HP3535WV2WG	HP0118	3000K	80	210	430	2.8	3.2	130	120	1000	8541401000HP0118
HP3535WU2WG	HP0119	3500K	80	210	430	2.8	3.2	130	120	1000	8541401000HP0119
HP3535WT2WG	HP0120	4000K	80	210	430	2.8	3.2	130	120	1000	8541401000HP0120
HP3535WR2WG	HP0121	5000K	80	210	430	2.8	3.2	130	120	1000	8541401000HP0121
HP3535WQ2WG	HP0122	5700K	80	210	430	2.8	3.2	130	120	1000	8541401000HP0122
HP3535WP2WG	HP0123	6500K	80	210	430	2.8	3.2	130	120	1000	8541401000HP0123
