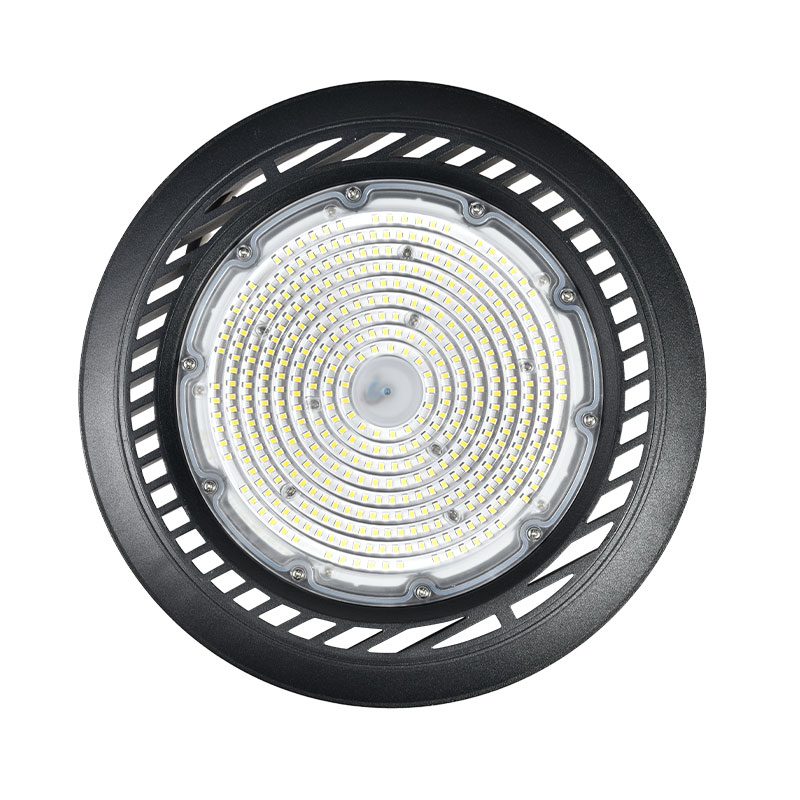

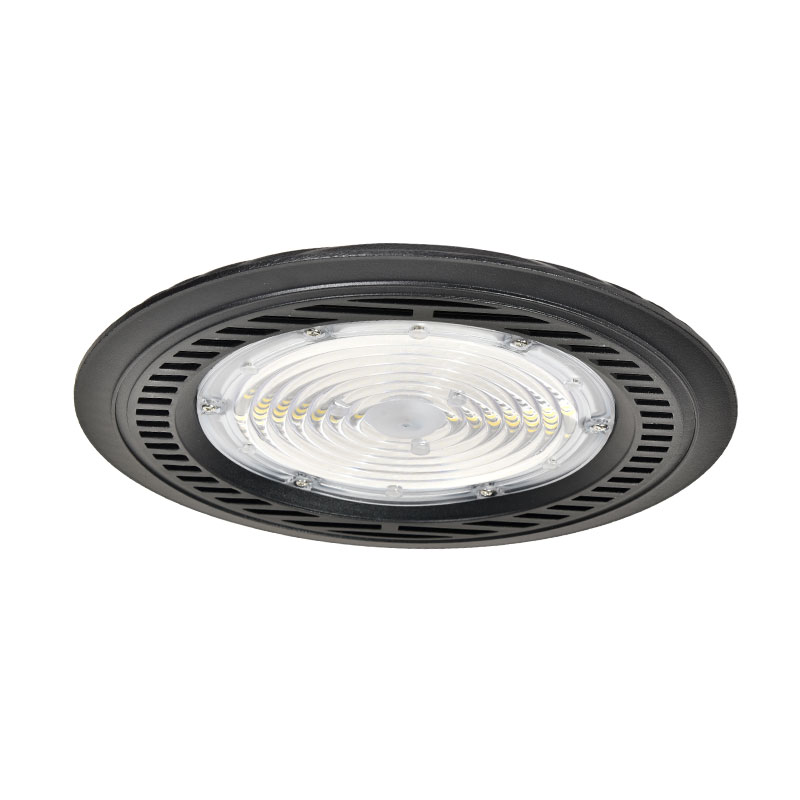

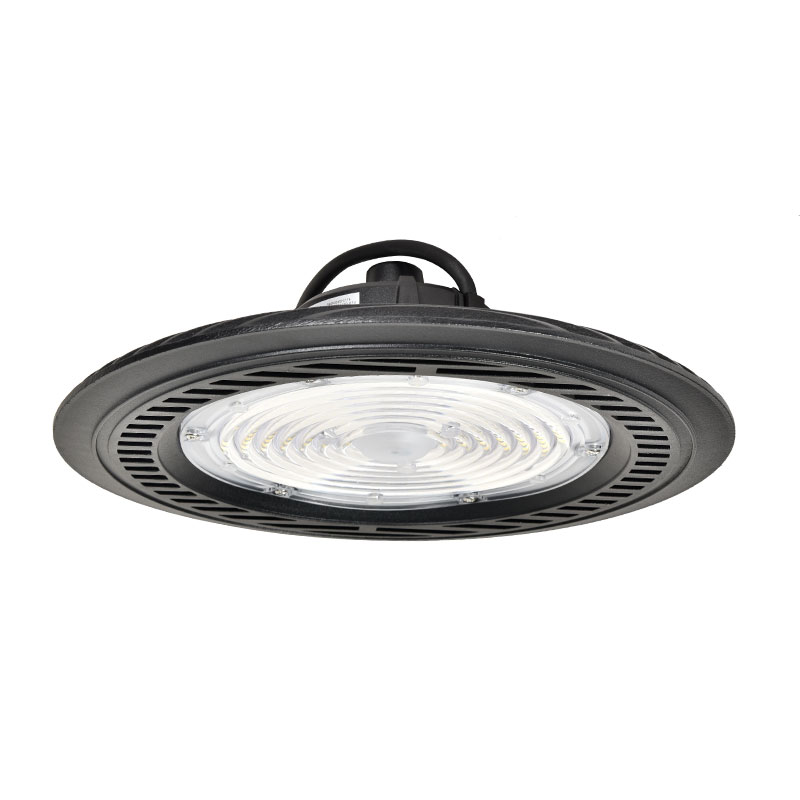

led high bay light also known as high ceiling light, is a high-energy-efficiency indoor LED lamp with a beautiful appearance that resembles a flying saucer UFO, so it is also called UFO led high bay light.
UFO led high bay light is made of magnesium aluminum alloy die-casting. It has a beautiful appearance and looks like a flying saucer. It is of high-end quality and has a very solid structure. It has good heat dissipation effect and can be IP65 waterproof. The light-emitting angle is available in 60 degrees and 120 degrees.
PRODUCT | RANK NO. | NOMINAL | SIZE | POWER | VOLTAGE | FLUX | EFFECT | CRI | IP | TYPICAL | PART NUMBER |
(CCT/k) | (mm) | (W) | (VF/V) | (lm) | (LM/W) | (Ra) | DEG | ||||
HBTH2915100VA2P5 | HB0101 | 3000K | 290*150.8mm | 100 | 220 | 12500 | 125 | 80↑ | IK08/IP66 | 90 | 9405500000HB01 |
HBTH2915100TA2P5 | HB0102 | 4000K | 290*150.8mm | 100 | 220 | 12500 | 125 | 80↑ | IK08/IP66 | 90 | 9405500000HB02 |
HBTH2915100RA2P5 | HB0103 | 5000K | 290*150.8mm | 100 | 220 | 12500 | 125 | 80↑ | IK08/IP66 | 90 | 9405500000HB03 |
HBTH2915100PA2P5 | HB0104 | 6000K | 290*150.8mm | 100 | 220 | 12500 | 125 | 80↑ | IK08/IP66 | 90 | 9405500000HB04 |
HBTH3315150VA2P5 | HB0105 | 3000K | 332.7 * 152.0 mm | 150 | 220 | 29700 | 135 | 80↑ | IK08/IP66 | 90 | 9405500000HB05 |
HBTH3315150TA2P5 | HB0106 | 4000K | 332.7 * 152.0 mm | 150 | 220 | 29700 | 135 | 80↑ | IK08/IP66 | 90 | 9405500000HB06 |
HBTH3315150RA2P5 | HB0107 | 5000K | 332.7 * 152.0 mm | 150 | 220 | 29700 | 135 | 80↑ | IK08/IP66 | 90 | 9405500000HB07 |
HBTH3315150PA2P5 | HB0108 | 6000K | 332.7 * 152.0 mm | 150 | 220 | 29700 | 135 | 80↑ | IK08/IP66 | 90 | 9405500000HB08 |
HBTH3717200VA2P5 | HB0109 | 3000K | 377.1 * 165.0 mm | 200 | 220 | 30800 | 140 | 80↑ | IK08/IP66 | 90 | 9405500000HB09 |
HBTH3717200TA2P5 | HB0110 | 4000K | 377.1 * 165.0 mm | 200 | 220 | 30800 | 140 | 80↑ | IK08/IP66 | 90 | 9405500000HB10 |
HBTH3717200RA2P5 | HB0111 | 5000K | 377.1 * 165.0 mm | 200 | 220 | 30800 | 140 | 80↑ | IK08/IP66 | 90 | 9405500000HB11 |
HBTH3717200PA2P5 | HB0112 | 6000K | 377.1 * 165.0 mm | 200 | 220 | 30800 | 140 | 80↑ | IK08/IP66 | 90 | 9405500000HB12 |
HBTH2915100VA1P5 | HB0113 | 3000K | 290*150.8mm | 100 | 110 | 12500 | 125 | 80↑ | IK08/IP66 | 90 | 9405500000HB13 |
HBTH2915100TA1P5 | HB0114 | 4000K | 290*150.8mm | 100 | 110 | 12500 | 125 | 80↑ | IK08/IP66 | 90 | 9405500000HB14 |
HBTH2915100RA1P5 | HB0115 | 5000K | 290*150.8mm | 100 | 110 | 12500 | 125 | 80↑ | IK08/IP66 | 90 | 9405500000HB15 |
HBTH2915100PA1P5 | HB0116 | 6000K | 290*150.8mm | 100 | 110 | 12500 | 125 | 80↑ | IK08/IP66 | 90 | 9405500000HB16 |
HBTH3315150VA1P5 | HB0117 | 3000K | 332.7 * 152.0 mm | 150 | 110 | 14850 | 135 | 80↑ | IK08/IP66 | 90 | 9405500000HB17 |
HBTH3315150TA1P5 | HB0118 | 4000K | 332.7 * 152.0 mm | 150 | 110 | 14850 | 135 | 80↑ | IK08/IP66 | 90 | 9405500000HB18 |
HBTH3315150RA1P5 | HB0119 | 5000K | 332.7 * 152.0 mm | 150 | 110 | 14850 | 135 | 80↑ | IK08/IP66 | 90 | 9405500000HB19 |
HBTH3315150PA1P5 | HB0120 | 6000K | 332.7 * 152.0 mm | 150 | 110 | 14850 | 135 | 80↑ | IK08/IP66 | 90 | 9405500000HB20 |
HBTH3717200VA1P5 | HB0121 | 3000K | 377.1 * 165.0 mm | 200 | 110 | 15400 | 140 | 80↑ | IK08/IP66 | 90 | 9405500000HB21 |
HBTH3717200TA1P5 | HB0122 | 4000K | 377.1 * 165.0 mm | 200 | 110 | 15400 | 140 | 80↑ | IK08/IP66 | 90 | 9405500000HB22 |
HBTH3717200RA1P5 | HB0123 | 5000K | 377.1 * 165.0 mm | 200 | 110 | 15400 | 140 | 80↑ | IK08/IP66 | 90 | 9405500000HB23 |
HBTH3717200PA1P5 | HB0124 | 6000K | 377.1 * 165.0 mm | 200 | 110 | 15400 | 140 | 80↑ | IK08/IP66 | 90 | 9405500000HB24 |
