YGKJ560 Biomss wood pellet machine

Sub-Category

Woodworking Machinery

Completed orders

Price

$25000.00

Delivery Cost

$0.00

Minimum Order

1 pieces

Location

West dazhan Village, Zaoyuan Street, Zhangqiu District, Jinan city, Shandong Province, , ,

Order

Ask about Product Send Buying Lead

The machine to make biomass pellets 6mm 8mm or 10mm.The raw materials could be wood sawdust,rice husk,straw ,corn cob and others

Wood Biomass YGKJ880 Pellet Machine


1231231

As a new type of energy, biomass wood pellets are mainly used for combustion to provide heat energy. It has the characteristics of high calorific value, low ash content and environmental friendliness.

Biomass pellet machine, also known as wood pellet machine, is a kind of equipment used to convert waste crop straw, wood chips, wheat grass and other biomass materials into efficient energy. It compresses and heats these materials to form a compact, granular substance.
Biomass pellet machine has many advantages. First, it can effectively use agricultural and forestry waste resources, reduce environmental pollution, and reduce dependence on traditional energy sources. Secondly, because biomass particles can be used as renewable energy, they have wide application prospects in heating and power generation. In addition, the use of biomass pellets can also reduce gas emissions and ash production compared to direct combustion of raw materials.
In operation, the user only needs to put the raw material into the feed mouth and adjust the appropriate parameters for processing to obtain the required wood pellet product. At the same time, the design also considers the security and easy maintenance factors.
With the increasing awareness of environmental protection and the increasing demand for clean energy, the market potential of biomass pellet machine is huge. At present, there are various sizes and different power devices for users to choose

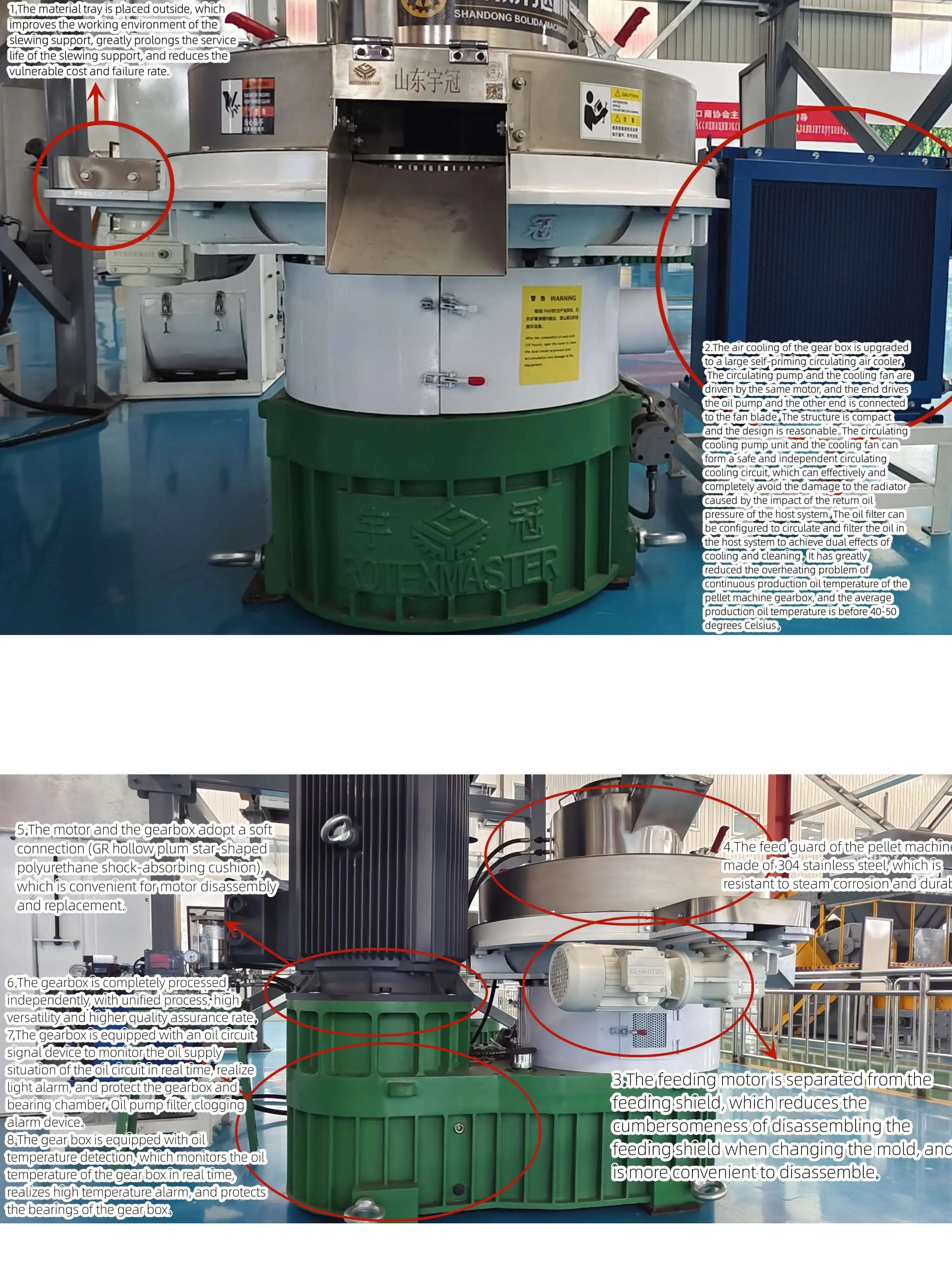

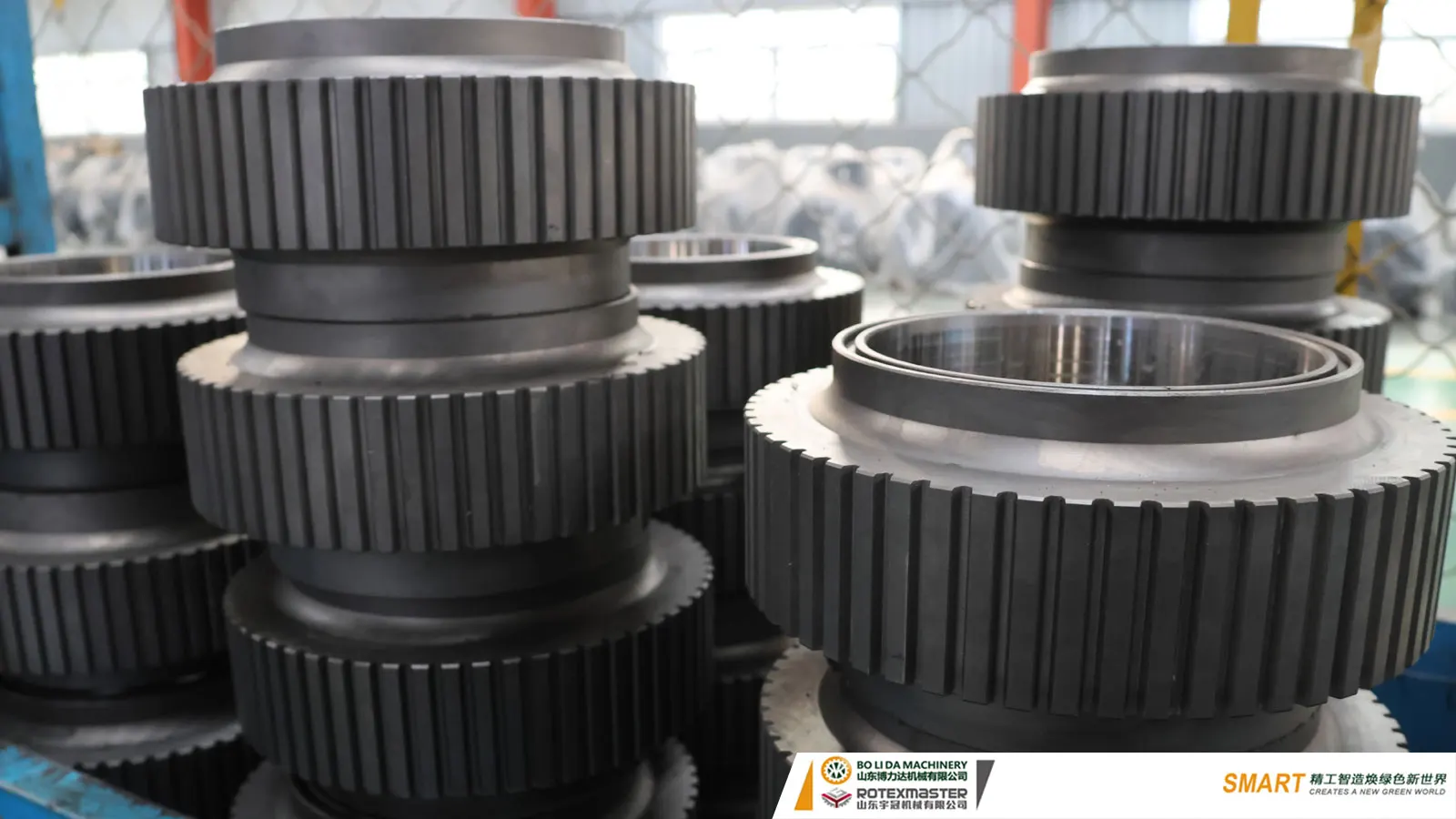

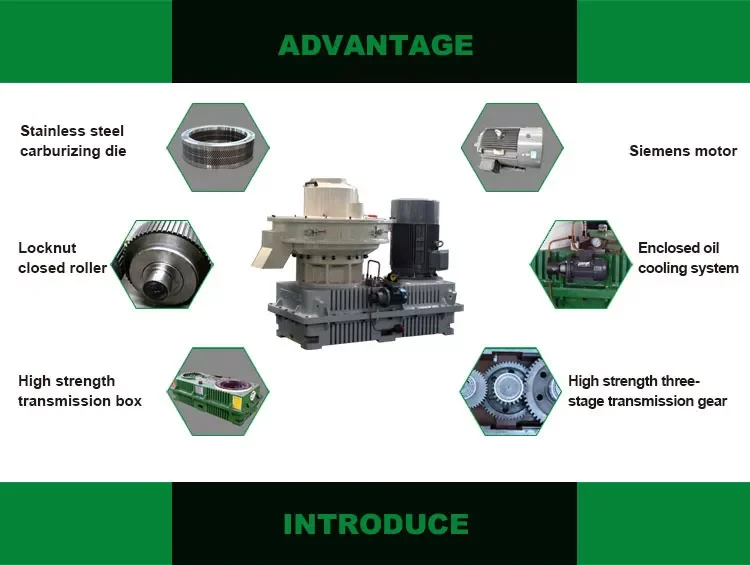

(1) The press roller adopts a new type of non-lock closed press roller (also known as non-injection butter press roller), the life of the press roller bearing is greatly extended, and the oil injection method can be indirect oil injection, automatic oil injection setting, or the oil injection method of cleaning the press roller assembly once a week and filling the grease every day (the old pellet machine is injected once every half an hour, and the oil injection is 2 minutes).
(2) The ring die adopts 6 row holes for discharging, which increases the discharging area and improves the production capacity. The service life of the ring die is generally 1000-1500 hours

ring die material: stainless steel overall carburizing ring die, the main material 4cr13, heat treatment hardness: HRC55-60, high wear resistance, strong stability, low cost, service life 1000h-1500h (according to the material situation, slightly different)
(3) ring die material: stainless steel overall carburizing ring die, the main material 4cr13, heat treatment hardness: HRC55-60, high wear resistance, strong stability, low cost, service life 1000h-1500h (according to the material situation, slightly different)

(4) The processing sequence of the ring die (4cr13) : blank forging - rough turning - annealing - semi-fine turning - drilling - quenching
(Whole) -- Finishing (grinding/machining)

(5) Self-developed sealing ring: The traditional particle secret seal uses fluorine rubber oil seal material, short service life (30 days), replacing the self-developed sealing ring, the sealing effect is better, and the service life of the sealing ring is increased by 5-8 times (except for foreign bodies such as iron blocks and stones), which greatly reduces the maintenance cost and spare parts cost.

(6) The bearing chamber design uses a combination of hollow shaft and spline shaft. Compared with the mandrel, the spline shaft plays a cushioning role, protects the hollow shaft in the reducer box, ensures the concentricity of the equipment, and reduces the failure rate of the equipment.

(7) The bearing chamber design structure is reduced to make the overall structure more compact and ensure the overall stability of the bearing chamber and pressing chamber.

(8) The use of self-developed big gear 3-stage transmission, the modulus increases, the strength of the gear increases, the carrying power is more stable, and the life of the reducer is greatly increased (the traditional gearbox 1-2 will replace the input shaft + bevel gear group, the replacement is troublesome and delayed production), the life of the gear in the gearbox can be guaranteed for 5 years (excluding bearings).

(9) The gear design adopts parallel axis helical gear (nie), good meshing, smooth transmission, low vibration, low noise. Additional gear overlap

The degree is large, reduces the load of each pair of gears, and greatly provides the gear carrying capacity.

(10) The gear is forged with 20CrMnTi alloy steel. The total weight of the gear is 600kg, which is 200-300kg heavier than that of other manufacturers. Forging -- rough turning -- annealing -- semi-finishing turning -- drilling -- quenching (overall) -- finishing turning ------ gear hobbing grinding (grinding teeth alone this process costs an increase of 30-40%, about 15,000 costs), but grinding teeth will improve gear precision.

(11) The gearbox shell is cast, the shell weight is 2.5t, the casting parts have good rigidity, good heat dissipation and low thermal deformation. The density of the welded shell is poor, the heat is changeable (affecting the precision of gear mesh, thus affecting the smoothness of gear transmission), the welding weight is light, and the stability of the base is poor.

(12) The gear box and the main shaft bearing room are lubricated by circulating gear oil, and the water-cooled oil temperature radiator reduces the oil temperature in the gear box and protects the bearing. The main shaft bearing chamber is lubricated with gear oil, which greatly reduces the cost of traditional oil grease lubrication. The new 560 gear box is refueled 130 kg at a time, replaced 500 hours after the first appearance, and replaced every six months after that, (the replacement cost of 130 kg needs 1800 yuan)
Type 700 pellet machine one-time refueling 160 kg (replacement cost 160 kg needs 2200 yuan)

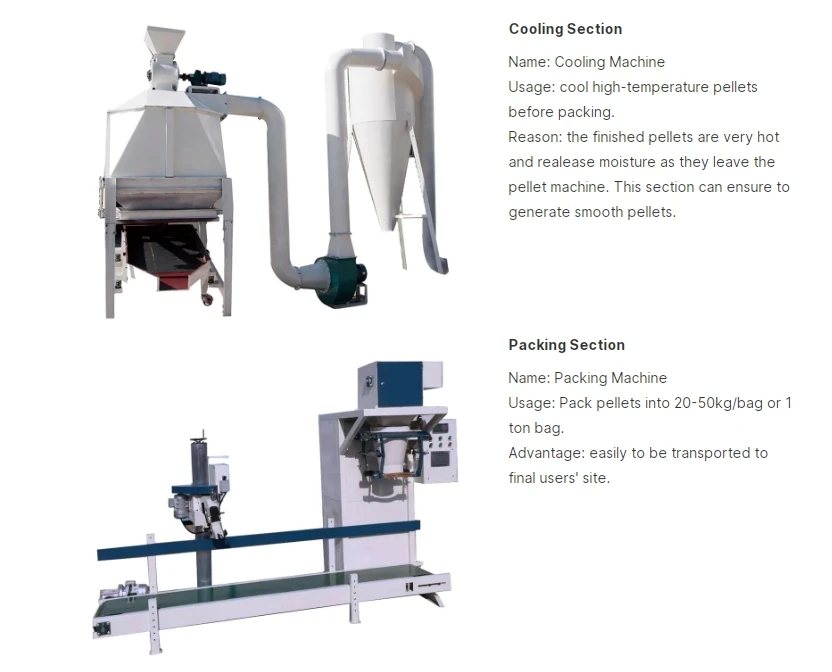

(13) The cooling dust removal design is combined with the cyclone dust collector and the bag dust removal, which eliminates the blockage caused by the mixing of water vapor and dust on the bag, resulting in poor cooling dust removal effect and affecting the quality of particle forming.

(14) Electronic control design, independent research and development of ring die temperature detection, bearing room temperature detection, oil temperature detection, speaking with data, so that users can better understand their own equipment, protective equipment failure rate (optional, there is a price difference).
4. The composition of the pellet machine and the material of each component:
Complete set of vertical ring ring die granule machine into: wood pellet machine host. Automatic oil filling system. Sacron +3 hole bag dust removal. Steam fan. Electric control cabinet

Product Feature:

Scope of application: this machine can be used in the rice husk, straw, cotton stalk, wood chips, palm shell , sunflower,olive, bagasse, and other raw materials.

Frequency conversion (Electromagnetic speed control) feeder, with overload protection device

High output, low noise, convenient operation and maintence.

Main parts of the bearing and standard parts are imported.

Equipped with between 6 and 12 more aperture and the thickness of the ring die, users can choose according to the different needs.

according to the different needs.

Technical Parameter of Wood Pellets Machine
Model	Main Power(kw)	Capacity(t/h)	Dimension(LHW)mm	Weight(t)
YGKJ560	90/132	1.0-2.0	220012801640	4.0
YGKJ880	220	3.0-4.0	280017202130	10

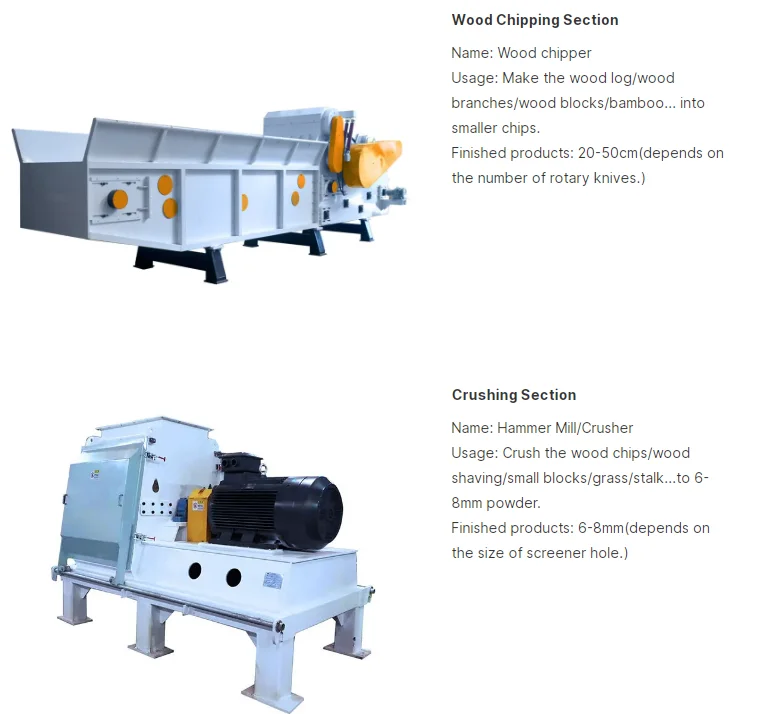

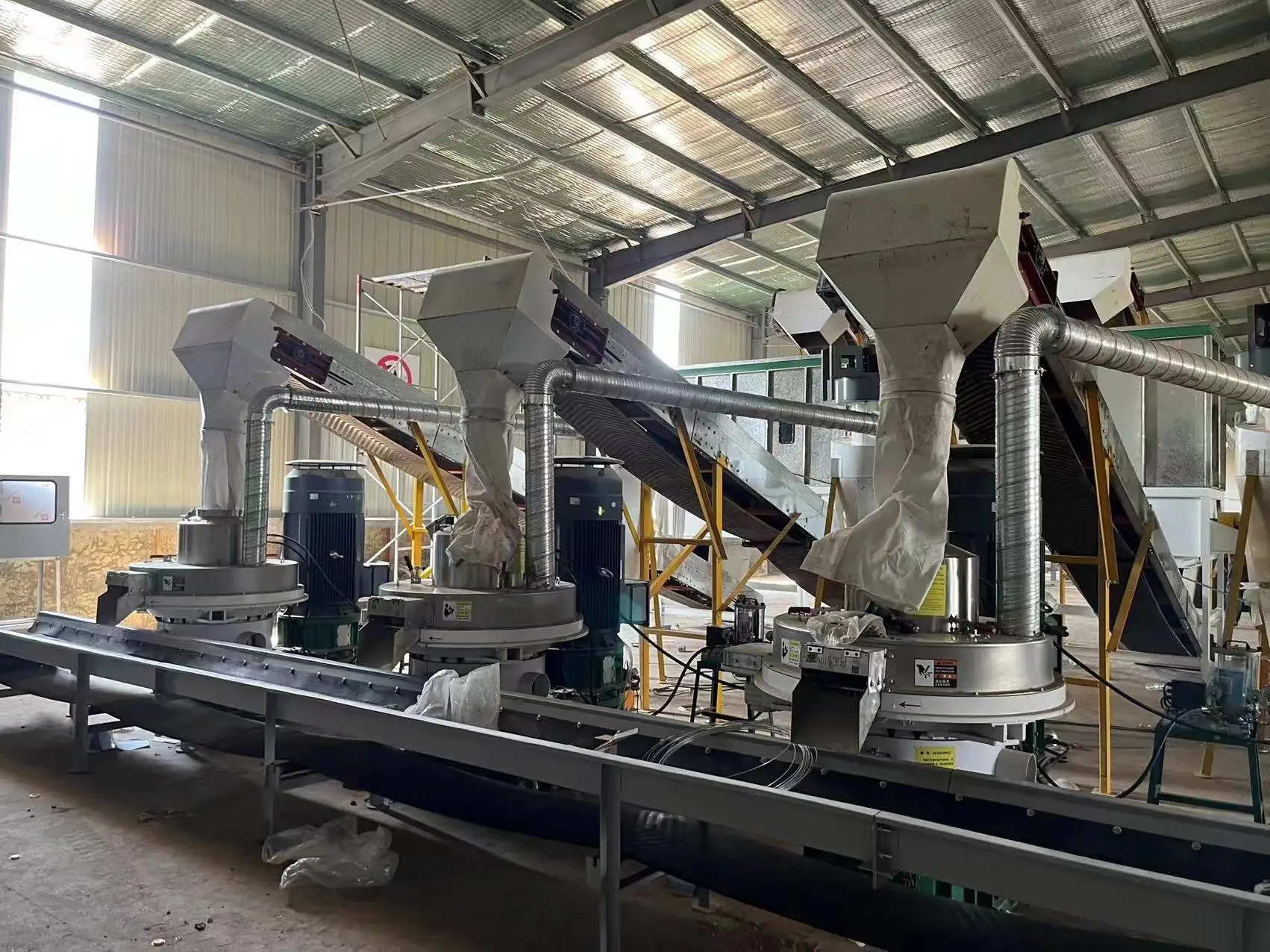

Wood pellet production line, widely used in large, medium and small wood chip manufacturers to produce high quality wood pellet fuel for sale.

This machine can be used in the rice husk, straw, cotton stalk, wood chips, palm shell , sunflower, olive, bagasse, and other raw materials.

1. We always welcome customers to visit our manufacturing factory and get to know more about us.

2. Customers can see all the manufacturing workflows when they visit our factory.

3. We also send engineers to the customer's place to help with the installation!

1. After-sale service:

We provide 12 months' warranty(After the warranty, we can provide life-long repair service).

2. Customization:

We make customized diesel engine crusher plastic machine.

3. Design:

* Mechanical Design: We make a good mechanical design to ensure they can operate without

any frictions, so that it can have a long service life.

* If you have some special scenes in your mind, you can draw it down and we can produce the

your pictures.

* Inspection: we have a strict Quality Inspection Department, and every machine would be tested before delivery.
