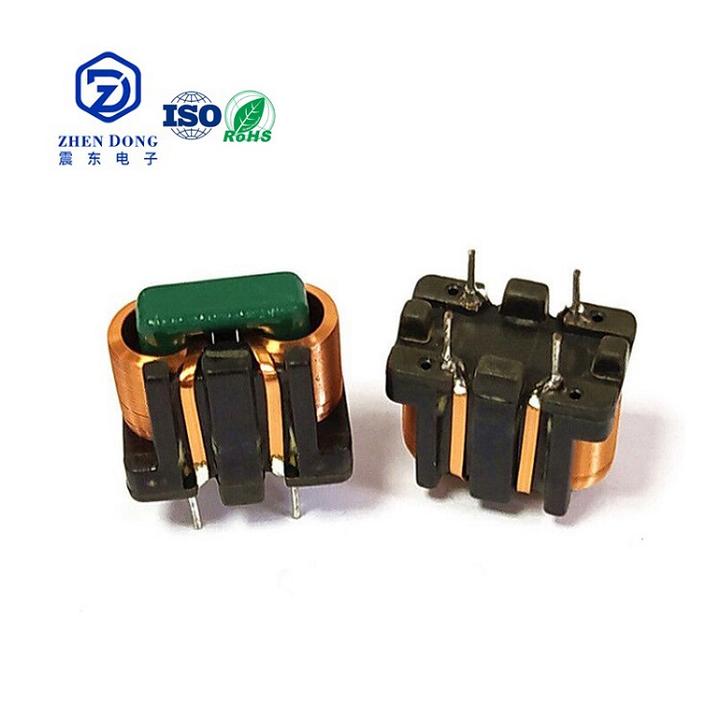

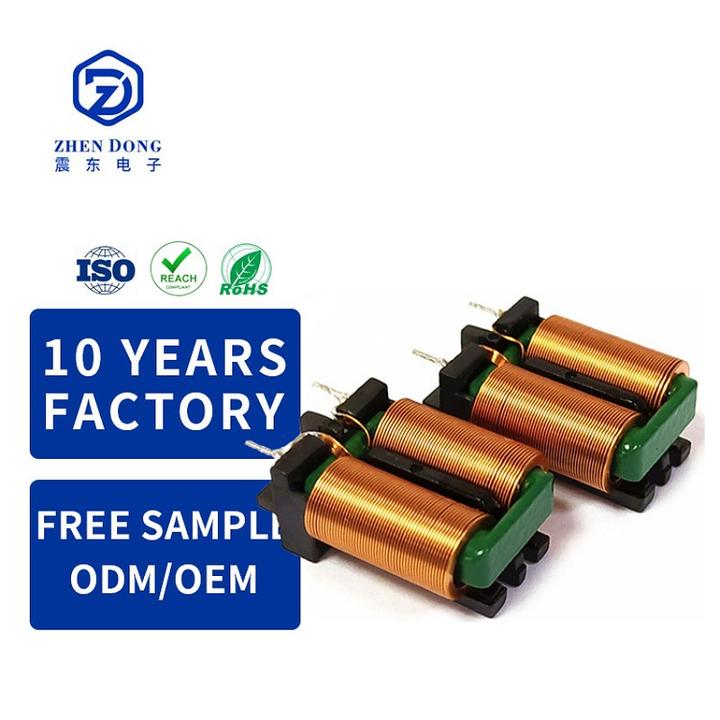

SQ1212 High-quality High Current Flat Inductor 250V DC/AC 1A 20mh Common Mode Inductor Suitable For Power Supplies and Charger
| Type | Inductor Leaded |
| Application | Automotive Television and audio equipment |
| Model Number | SQ1212 |
| Place of Origin | Guangdong, China |
| Brand Name | Zhendong |
| D/C | Customized |
| Brand | OEM available |
| Supplier Type | manufacturer |
| Tolerance | 20% |
| Operating Temperature | -40℃~+125℃ |
| Rated Power | Standard |
| Package Type | DIP |
| Resistance Tolerance | M |
| Temperature Coefficient | customized |
| Resistance | customized |
| Media Available | customized |
| Frequency - Self Resonant | Standard |
| Features | customized |
| Inductance | 20mh |
| Q @ Freq | 10 |
| Mounting Type | DIP |
| Inductance - Connected In Parallel | customized |
| Inductance - Connected In Series | customized |
| Current Rating - Parallel | customized |
| Current Saturation - Parallel | customized |
| Current Saturation - Series | customized |
| DC Resistance (DCR) - Parallel | customized |
| DC Resistance (DCR) - Series | customized |
| Shielding | unshieled |
| Material - Core | ferrite |
| Current Rating (Amps) | 1-1.5A |
| Current - Saturation | standard |
| DC Resistance (DCR) | 220Ω |
| Item | Common Mode Inductor |
| OEM | Available |
| Advantage | Competitive price |
| Certification | RoHs ISO9001 |
| Price Term | EXW,FOB,DDP,CIF,CNF |
| Shipping | UPS,DHL,FEDEX,TNT |
| Delivery Time | 7-15days |
| Packing | Plastic Tray +Carton Box |
| Name | Common Mode Chock |
| Selling Units: | Single item |
| Single package size: | XX cm |
| Single gross weight: | kg |
Product Description: SQ1212 High-Quality High Current Flat Inductor - 250V DC/AC 1A 20mH Common Mode Inductor
Introducing the SQ1212 High-Quality High Current Flat Inductor, a state-of-the-art electrical component designed to enhance performance and reliability in power supplies and charging applications. Manufactured by Qingyuan Zhendong Electronic Technology Co., Ltd., this common mode inductor is engineered to meet the demanding needs of modern electronics, ensuring optimal functionality in various environments.
Key Features:
-
High Current Handling
: The SQ1212 is capable of managing up to 1A of current, making it an ideal choice for applications that require robust power handling without compromising on efficiency. Its ingenious design allows for minimal energy loss, ensuring that your systems stay cool and operate smoothly.-
Voltage Versatility
: Rated for 250V DC/AC, this inductor is engineered to support a wide range of applications, from standard electronic devices to more intricate power solutions. This versatility makes it a perfect fit for both industrial and consumer electronics.-
Excellent Inductance Value
: With an inductance value of 20mH, the SQ1212 is optimized for handling common mode noise, providing your circuits with superior performance and enhanced signal integrity. This feature is crucial for applications in audio equipment, power supplies, and chargers where electromagnetic interference (EMI) can adversely affect functionality.-
Flat Design for Easy Integration
: The flat form factor of this inductor allows for easy integration into various circuit designs while optimizing space. Its sleek profile enables more compact assembly, a critical advantage in today's miniaturized electronic devices.-
Durable Construction
: Built with high-quality materials, the SQ1212 inductor is designed to withstand the rigors of extended use. Its robust construction guarantees longevity, giving you peace of mind that your component will perform reliably over time.Applications:
The SQ1212 High-Quality High Current Flat Inductor excels in a variety of applications, including:
-
Power Supplies
: Perfect for switch-mode power supplies (SMPS), this inductor helps filter out unwanted electrical interference, enhancing overall power conversion efficiency.-
Chargers
: Whether it’s for smartphones, laptops, or other rechargeable devices, the SQ1212 ensures steady power delivery while minimizing noise, making it a dependable choice for high-performance chargers.-
Audio Equipment
: In audio systems, maintaining clear, untainted signals is essential. The SQ1212’s low EMI characteristics ensure high-quality sound reproduction without distortion.-
Telecommunications
: This inductor is an essential component in communication devices, providing reliable performance and reducing noise in signal transmission.Technical Specifications:
-
Product Name
: SQ1212 High-Quality High Current Flat Inductor -Inductance
: 20mH -Rated Current
: 1A -Rated Voltage
: 250V DC/AC -Type
: Common Mode Inductor-
Manufacturer
: Qingyuan Zhendong Electronic Technology Co., Ltd.Benefits:
-
Enhanced Performance
: By reducing electromagnetic interference, the SQ1212 inductor improves the overall efficiency and reliability of your electronic devices.-
Cost-Effective Solution
: Investing in high-quality inductors like the SQ1212 results in lower failure rates and increased system longevity, translating to significant cost savings over time.-
Flexible Usage
: Suitable for a wide range of applications, this inductor adapts easily to various design specifications, making it an indispensable addition to your electronic components inventory.Why Choose Qingyuan Zhendong Electronic Technology Co., Ltd.?
At Qingyuan Zhendong Electronic Technology Co., Ltd., we pride ourselves on delivering innovative electronic solutions. With a commitment to quality and customer satisfaction, our products, including the SQ1212 High-Quality High Current Flat Inductor, undergo rigorous testing and quality assurance processes. Our experienced engineering team continuously works on improving our products to ensure that we offer only the best to our clients.
Ordering Information:
Enhance your electronics with the SQ1212 High-Quality High Current Flat Inductor. For bulk purchases or inquiries, please contact our sales team for competitive pricing and availability. Embrace the future of electronic performance with our reliable and efficient inductors designed for today’s high-demand applications.
---
