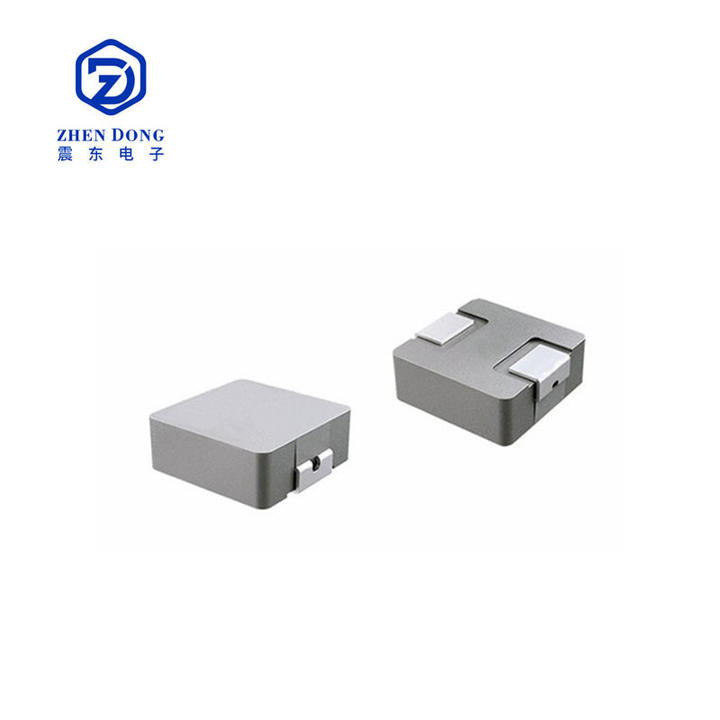

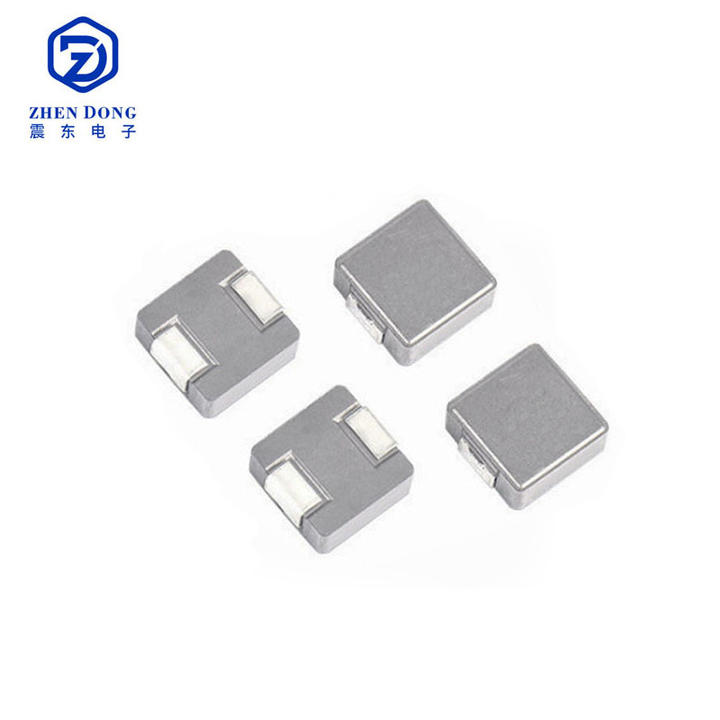

Molded Surface Mount Inductors 0402 4.4*4.2*1.8mm 0.56uh Chinese Supplier High Current Molding Processing Smd Inductor
| Type | shielded power inductor |
| Application | LED Lighting pcba mobile pcba |
| Model Number | 0402-R56M |
| Place of Origin | Guangdong, China |
| Brand Name | Zhendong |
| D/C | Customized |
| Brand | OEM available |
| Supplier Type | manufacturer |
| Tolerance | 20% |
| Operating Temperature | -40℃~+125℃ |
| Rated Power | Standard |
| Package Type | SMD |
| Resistance Tolerance | M |
| Temperature Coefficient | customized |
| Resistance | customized |
| Media Available | customized |
| Frequency - Self Resonant | Standard |
| Features | Ferrite |
| Height - Seated (Max) | shielded |
| Inductance | 0.56uh |
| Q @ Freq | 10-200 |
| Mounting Type | SMT |
| Size / Dimension | 4.4*4.2*1.8mm |
| Height | 1.8mm |
| Inductance - Connected In Parallel | customized |
| Inductance - Connected In Series | customized |
| Current Rating - Parallel | customized |
| Current Saturation - Parallel | customized |
| Current Saturation - Series | customized |
| DC Resistance (DCR) - Parallel | customized |
| DC Resistance (DCR) - Series | customized |
| Shielding | shieled |
| Material - Core | ferrite |
| Current Rating (Amps) | 7A |
| Current - Saturation | 10A |
| DC Resistance (DCR) | 16 |
| Item | Molding Power Inductor |
| Advantage | Competitive price |
| Certification | CE RoHs ISO9001:2008 |
| OEM | Available |
| Shipping | UPS, DHL,FEDEX,AIR,SEA |
| Price Term | EXW,FOB,DDP,CIF |
| Name | smd inductor |
| Delivery Time | 10-15days |
# Product Overview
Introducing the Molded Surface Mount Inductors from Qingyuan Zhendong Electronic Technology Co., Ltd., specifically designed for high efficiency and small form-factor applications. Measuring just 0402 (4.4mm x 4.2mm x 1.8mm), our inductors are engineered to provide superior performance, optimal inductor values, and high current handling capabilities. Ideal for advanced electronic devices where space is a premium, these inductors can be reliably used in numerous applications, including power management, filtering, and signal integrity.
# Key Features
-
Size and Form Factor
: The compact dimensions of 0402 (4.4mm x 4.2mm x 1.8mm) ensure that these inductors fit seamlessly into tight spaces while delivering robust electrical performance.-
Inductor Value
: With an inductance of 0.56µH, these inductors are perfect for applications requiring precise control of current flow and project-specific tuning.-
High Current Handling
: Crafted using advanced molding processing techniques, our surface mount inductors support high current environments, making them suitable for applications such as DC-DC converters, power supplies, and RF circuits.-
Quality Assurance
: Manufactured in compliance with strict international standards, each inductor undergoes rigorous testing to guarantee reliability and longevity in a variety of operational conditions.-
Temperature Stability
: These inductors are designed with exceptional thermal performance in mind, ensuring stable operation across various temperature ranges, thus enhancing the overall efficiency of your devices.# Applications
The Molded Surface Mount Inductors are versatile and can be employed in various high-demand electronic applications, including:
-
DC-DC Conversion
: Essential in both step-up and step-down designs, these inductors enhance power delivery and conversion efficiency in various consumer electronics.-
Filter Circuits
: Utilize our inductors to design low-pass filters that provide cleaner signals by reducing noise and interference in sensitive circuit designs.-
RF Applications
: Their compact size and superior performance make these inductors ideal for RF amplifiers and transmission applications, ensuring a reliable inductive pathway.-
Power Management
: Perfect for innovative battery management systems in portable devices, enabling efficient power flow without overheating.# Technical Specifications
-

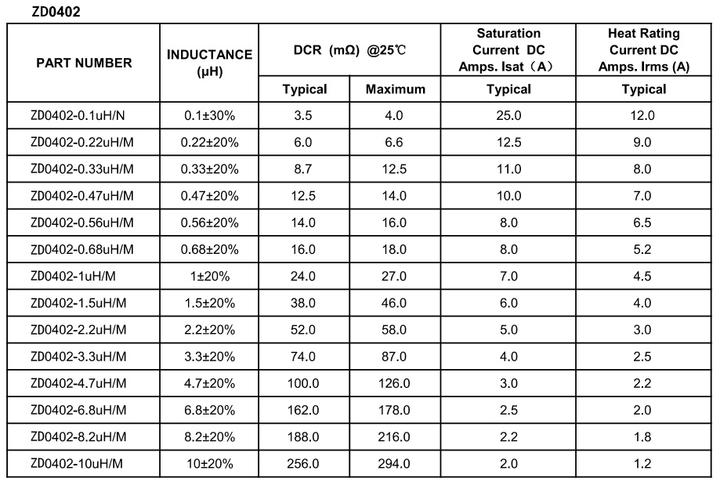

Part Number
: ZD0402-0.56 -Dimensions
: 4.4mm x 4.2mm x 1.8mm -Inductance
: 0.56µH -Rated Current
: High current handling capability (please refer to the datasheet for specific ratings). -Operating Temperature Range
: -40°C to +125°C-
Mounting Type
: SMD (Surface Mount Device), optimized for automated PCB assembly.# Competitive Advantage
Qingyuan Zhendong Electronic Technology Co., Ltd. is a leading Chinese supplier known for its innovative manufacturing techniques and commitment to quality. Our molded surface mount inductors are the result of extensive research and development, ensuring that you receive a product that leverages cutting-edge technology to meet contemporary electronic challenges. With our strong emphasis on customer satisfaction, we offer flexible ordering solutions and robust support to ensure you find the right components for your projects.
# Why Choose Qingyuan Zhendong?
1.
Expertise in Electronics Manufacturing
: With years of experience in the industry, our team of experts is dedicated to delivering high-quality products that exceed your expectations.2.
Efficient Production Process
: Utilizing state-of-the-art molding processing techniques, we ensure high-volume production capabilities without sacrificing quality or performance.3.
Focus on Innovation
: Our commitment to R&D allows us to stay ahead of industry trends, offering you the latest solutions for your electronic needs.4.
Customer-Centric Approach
: We value every partnership and provide comprehensive support to help you integrate our products into your designs effectively.# Packaging and Availability
Our Molded Surface Mount Inductors are available in various packaging options to suit your project requirements, ensuring convenience and efficiency during the procurement process. Each unit is carefully packaged to prevent damage during transportation, guaranteeing that you receive your order in pristine condition.
# Order Information
For pricing details, bulk orders, or technical support, please contact us directly or visit our website. Partner with Qingyuan Zhendong Electronic Technology Co., Ltd. today and experience the difference that high-quality molded surface mount inductors can make in your electronic designs. Whether you're a hobbyist or an established enterprise, our solutions are designed to help you achieve optimal performance and reliability in your electronics applications.
