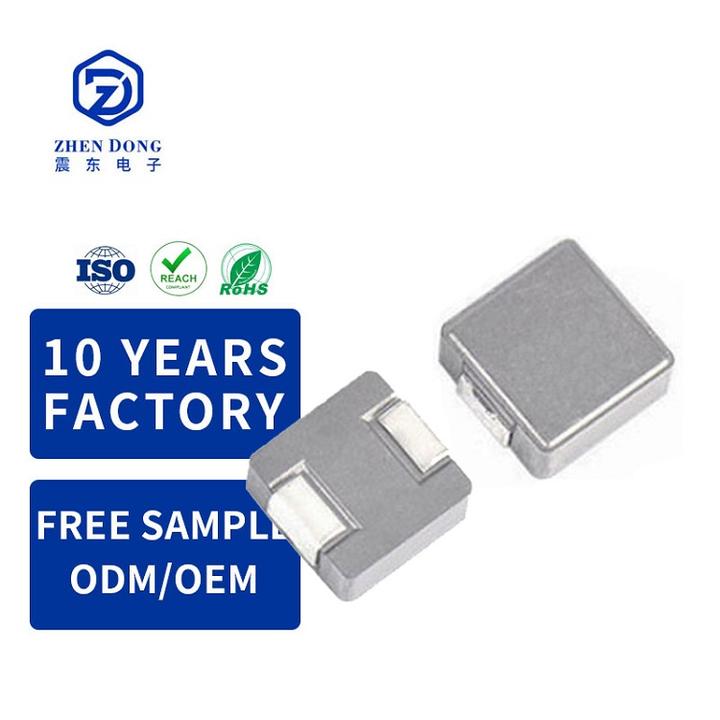

Molded Power Inductor 0502 5.7*5.2*1.8mm 15A 0.47uh 0.68uh 1.0uh 1.5uh 2.2uh 3.3uh 4.7uh 5.6uh 6.8uh 10uh SMD Inductor
| Type | Inductor Surface Mount |
| Application | graphics cards, audio amplifiers,video devices |
| Model Number | 0502 |
| Place of Origin | Guangdong, China |
| Brand Name | Zhendong |
| D/C | Customized |
| Brand | OEM available |
| Supplier Type | manufacturer |
| Tolerance | 20% |
| Operating Temperature | -40℃~+125℃ |
| Rated Power | Standard |
| Package Type | SMD |
| Temperature Coefficient | customized |
| Resistance | customized |
| Media Available | customized |
| Frequency - Self Resonant | Standard |
| Features | Ferrite |
| Height - Seated (Max) | shielded |

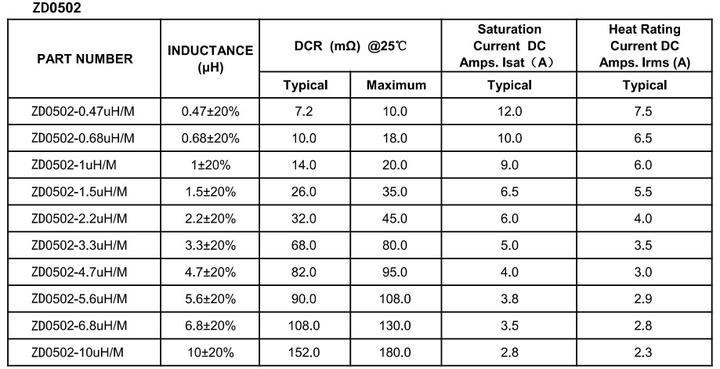

| Inductance | 0.47uh 1.0uh 1.5uh 2.2uh 3.3uh 4.7uh 6.8uh 10uh |
| Q @ Freq | 10-200 |
| Mounting Type | SMT |

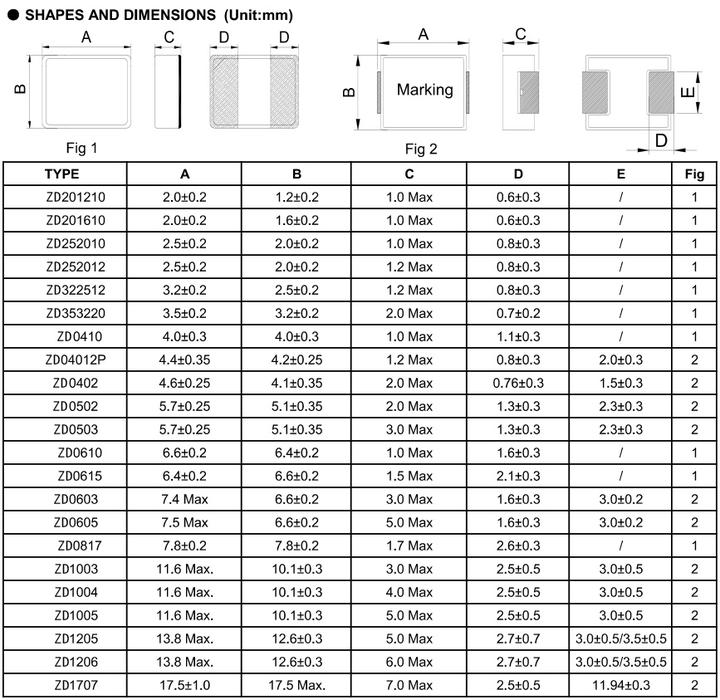

| Size / Dimension | 5.7*5.2*1.8mm |
| Height | 1.8mm |
| Inductance - Connected In Parallel | customized |
| Inductance - Connected In Series | customized |
| Current Rating - Parallel | customized |
| Current Saturation - Parallel | customized |
| Current Saturation - Series | customized |
| DC Resistance (DCR) - Parallel | customized |
| DC Resistance (DCR) - Series | customized |
| Shielding | shieled |
| Material - Core | ferrite |
| Current Rating (Amps) | 2.5-15A |
| Current - Saturation | 3-20A |
| DC Resistance (DCR) | 4.5-175mΩ |
| Item | smd inductor |
| Advantage | Competitive factory price |
| Certification | RoHs ISO9001 |
| OEM | Available |
| Shipping | UPS,Fedex,UPS,EMS, AREMEX,etc |
| Price Term | EXW,FOB,DDP,CIF |
| Delivery Time | 5-7days |
| Name | Electronic Components |
# Product Overview Introducing the Molded Power Inductor 0502 from Qingyuan Zhendong Electronic Technology Co., Ltd. This high-performance surface mount device (SMD) inductor measures just 5.7mm x 5.2mm x 1.8mm and is designed to deliver exceptional reliability and efficiency in various electronic applications. With a current rating of up to 15A and a variety of inductance values ranging from 0.47µH to 10µH, this inductor is an ideal choice for power supplies, DC-DC converters, and RF applications.
# Key Features -
Compact Size
: The 0502 profile ensures easy integration into tight spaces, making it suitable for both handheld devices and larger electronic systems. -High Current Rating
: With a maximum current rating of 15A, this inductor can handle demanding applications while maintaining performance. -Versatile Inductance Options
: Available inductance values of 0.47µH, 0.68µH, 1.0µH, 1.5µH, 2.2µH, 3.3µH, 4.7µH, 5.6µH, 6.8µH, and 10µH provide flexibility to meet diverse circuit requirements. -Molded Construction
: The molded design enhances mechanical strength, improves thermal performance, and reduces acoustic noise, ensuring reliability under various operating conditions. -SMD Design
: The surface mount configuration allows for automated assembly processes and minimizes PCB space usage, making it perfect for high-volume applications.# Applications The Molded Power Inductor 0502 is designed for use in a wide array of applications, including but not limited to:
-
Power Supply Circuits
: Ideal for buck, boost, and synchronous converter designs, enhancing energy efficiency and performance. -Consumer Electronics
: Perfectly suited for smartphones, tablets, laptops, and other portable devices that require compact and efficient power solutions. -Industrial Equipment
: Essential for industrial automation systems, robotics, and control systems where performance and reliability are critical. -Telecommunications
: Utilized in RF applications, ensuring stable performance for communication devices and transmission systems.# Technical Specifications -
Dimensions
: 5.7mm x 5.2mm x 1.8mm -Current Rating
: Up to 15A -Inductance Values
: 0.47µH, 0.68µH, 1.0µH, 1.5µH, 2.2µH, 3.3µH, 4.7µH, 5.6µH, 6.8µH, 10µH -Inductor Type
: Molded SMD Inductor -Temperature Range
: Operating temperature range typically from -40°C to +125°C# Why Choose Qingyuan Zhendong Electronic Technology? Qingyuan Zhendong Electronic Technology Co., Ltd. is a recognized leader in electronic components manufacturing, specializing in high-quality inductors that meet rigorous standards. With a commitment to innovation and customer satisfaction, our products are designed with precision to ensure optimal performance and longevity. By choosing our Molded Power Inductor 0502, you're guaranteed to receive a product that not only meets industry standards but exceeds expectations in efficiency and durability.
# Installation and Handling The Molded Power Inductor 0502 features a standard footprint compatible with most SMD assembly processes. For optimal performance, ensure that the inductor is soldered correctly, maintaining good thermal connection to the PCB. Proper handling should also be observed to minimize mechanical stress during installation. Refer to the datasheet for recommended soldering temperatures and techniques.
# Compliance and Certification Our Molded Power Inductor 0502 complies with international standards such as RoHS, ensuring it is free from hazardous substances and safe for use in consumer products. This commitment to safety and environmental responsibility is part of our mission to deliver high-quality electronic components.
# Custom Solutions At Qingyuan Zhendong Electronic Technology Co., Ltd., we understand that different applications may have unique requirements. That’s why we offer custom solutions tailored to your specific needs. Whether you need variations in inductance, current ratings, or other specifications, our engineering team is ready to collaborate with you to provide the perfect solution for your project.
# Ordering Information To purchase the Molded Power Inductor 0502 or to learn more about our range of electronic components, visit our official website or contact our sales team. We offer competitive pricing, bulk purchasing options, and fast shipping to meet the demands of your projects.
# Customer Support
Our dedicated customer support team is here to assist you with any inquiries regarding the Molded Power Inductor 0502. Whether you need technical information, installation tips, or order assistance, we are committed to providing you with the support you need to succeed in your projects.
Enhance your electronic designs with the Molded Power Inductor 0502 from Qingyuan Zhendong Electronic Technology Co., Ltd. Experience superior performance, flexibility, and reliability tailored to meet the demands of modern electronics.
