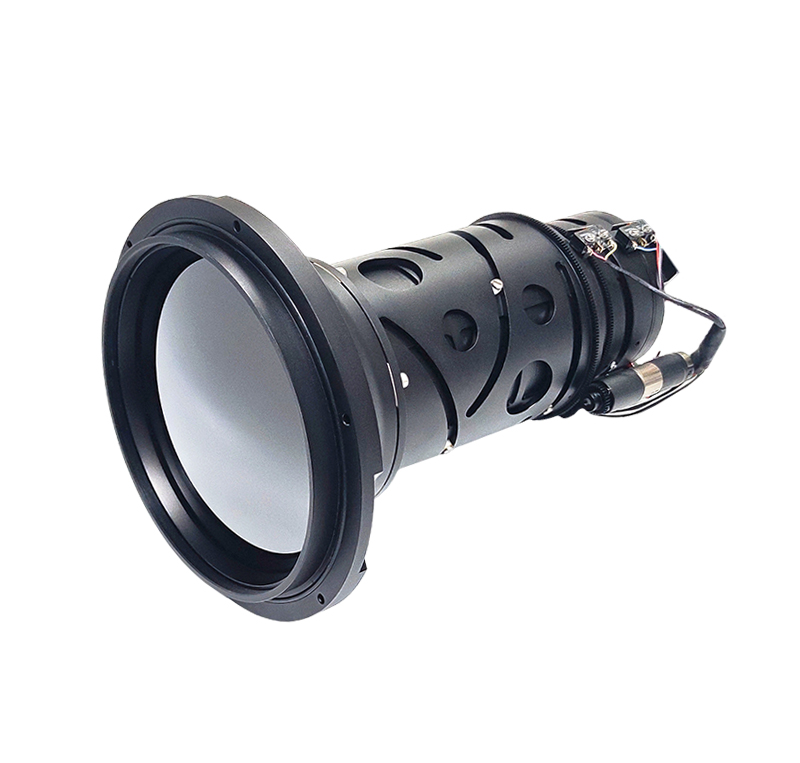

LWIR Zoom Infrared Lens
Category
Security & Protection
Sub-Category
CCTV Camera
Completed orders
0
Price
$5000.00
Delivery Cost
$600.00
Minimum Order
1
pieces
Location
Yanjiao, East of Beijing, China, , ,
The uncooled continuous zoom infrared thermal imager is a mature and highly reliable product independently developed by our company that complies with ISO standards. It uses high-quality materials and advanced manufacturing technology. Thermal imagers have the characteristics of strong thermal imaging capability, high image quality, fast response speed, and good compatibility.
Details Parameters
Advanced technologies for the highest performance long-wave focal planes:
1.High-durability and hard-carbon 8-14 µm LWIR wavelength DLC exposed mirror coating.
2.High precision manufacturing processes and strict quality control procedures ensure stable imaging in various practical use environments.
3.Optimized for 1280x1024 LWIR cameras with 12 μm pixel pitch.
4.Motorized focus and zoom mechanism with crisp image over the full range.
| Specifications | ||
| OPTICAL | ||
| Focal Length / F# | 25~225mm F/1.0~1.5 | Compatible with detectors having 25mm ≥ EFL≤225mm |
| Detector (FPA) type | 1280×1024-12μm | |
| Working Spectral Band(SR) | 8um-14um | |
| FOV | 34.15°×27.61°～3.91°×3.13° | |
| Exposed Mirror Coating | DLC | AR and HD are available upon request |
| Imaging Range | 25m to infinity | |
| MECHANICAL | ||
| Zoom Mechanism | Motorized | |
| Total Weight | ≤3.4kg | lens and control pannel |
| Dimensions | φ195mm×266.36mm | Length is available upon request |
| Mount | Customized to Specification | |
| ENVIRONMENTAL | ||
| Operating Temperature | -40ºC to +80ºC | |
| Storage Temperature | -40ºC to +80ºC | Keep two houres when test |
| Shock and Vibrations | Per applicable standard | |
| Front Lens Sealing | IP67 | |
