JL-700W

Zhaga Book-18 Receptacle（Leadless version）

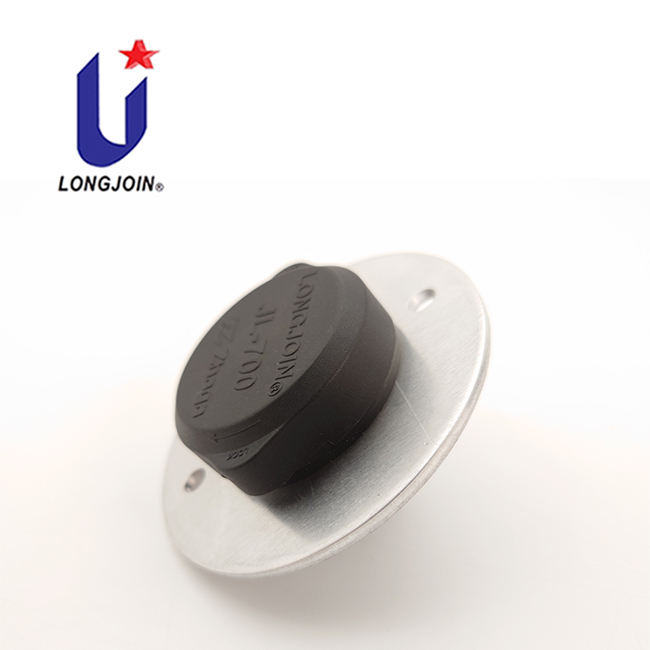

Product Summary

Jl-700W locking socket meets the requirements of Zhaga Book-18 standard interface (Z-LEX-R、Z-LEX-C) and has passed relevant certification, which is convenient for the development and installation of road lighting, regional lighting or commercial and residential lighting, such as street lights, industrial and mining lights, corridor lights, wall lights, etc.

Drilling plan

FEATURES

• Standardized interface defined in Zhaga Book-18

• Compact size allowing greater flexibility in luminaire design

• Advanced sealing to achieve IP66 with no mounting screws

• Flexible mounting position, upwards, downwards and sideways facing

• Integrated single gasket that seals to both luminaire and module that minimizes assembling time

Specifications

Line color definition

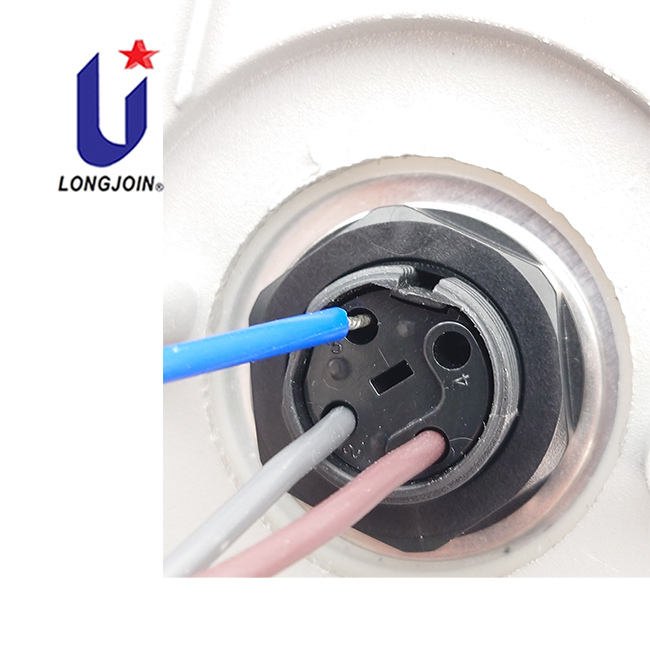

- Port 1：24VDC

- Port 2：DALI–/GND

- Port 3：DALI+

- Port 4：reserveI/O

Wiring diagram

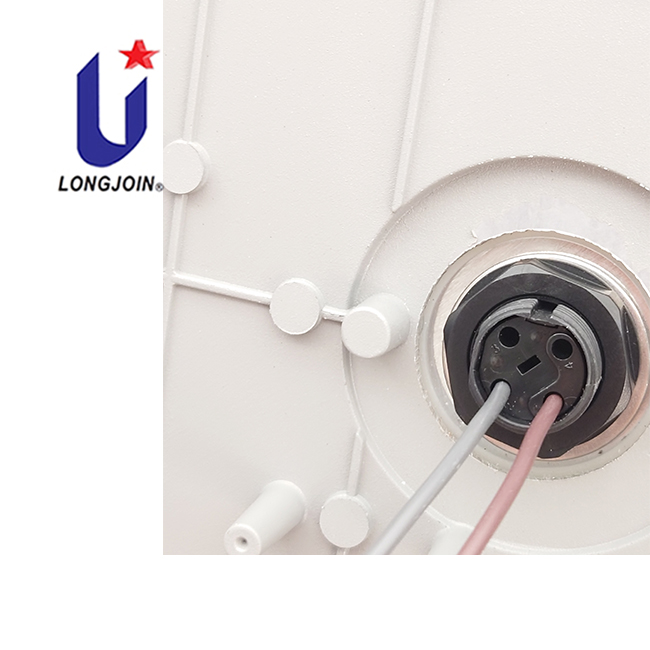

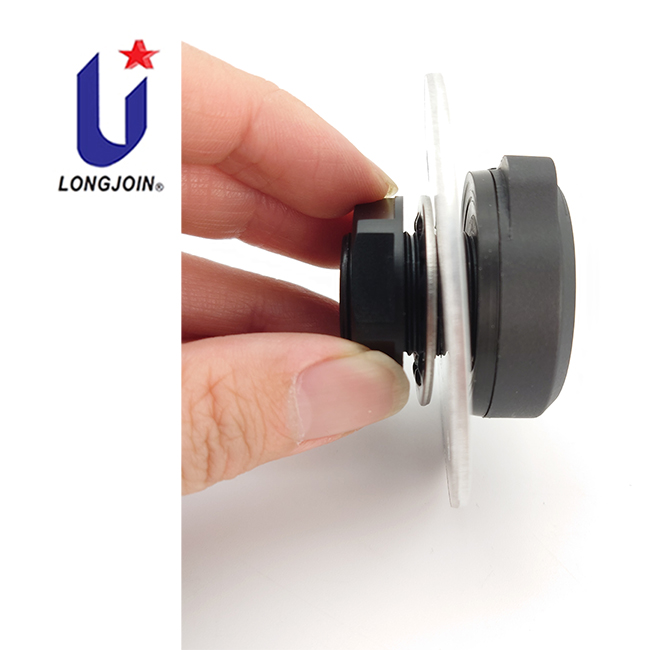

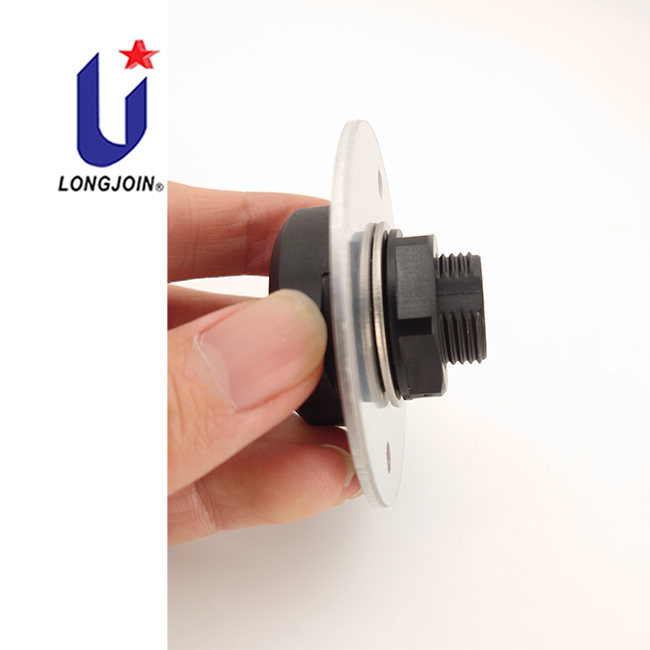

Assemblies

Suggested wires

20~22AWG，lead ends tinned
