JL-240F-Waterproof Twist-lock Dimming receptacle (NEMA 7P/5P)

Sub-Category

Electronic Accessories & Supplies

Completed orders

Price

$5.00

Delivery Cost

$100.00

Minimum Order

1 pieces

Location

4292 Hutai Road, Baoshan, Shanghai, China, , ,

Order

Ask about Product Send Buying Lead

The Longjoin JL-240F rotary lock light controller socket is an outdoor lighting equipment base that complies with NEMA standards. It is designed for intelligent control of LED lamps and is compatible with ANSI C136.41 standard light controllers. Stable signal transmission is achieved through 2 or 4 gold-plated contact pieces on the top. It is made of UV stabilized polycarbonate or 304 stainless steel material, with IP66/IP67 high protection level.

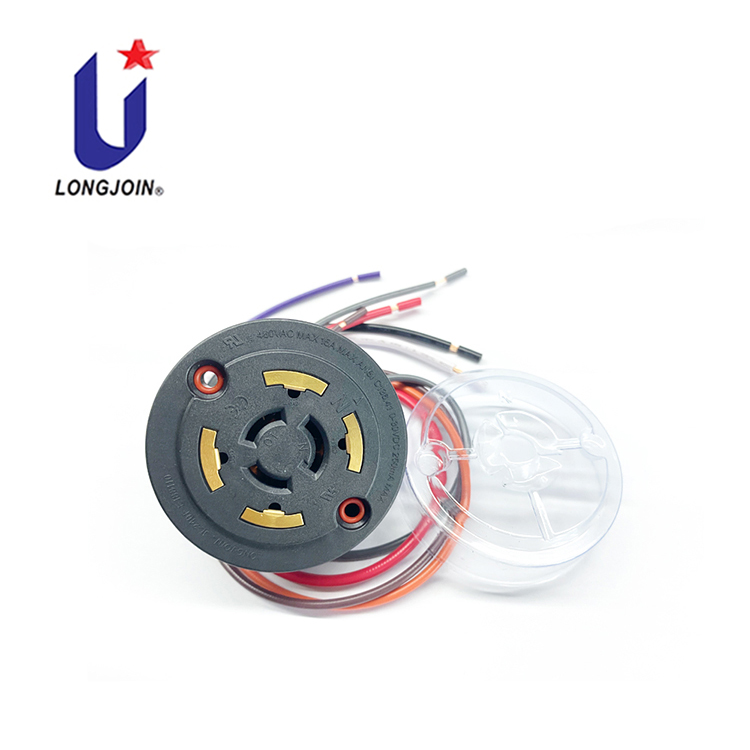

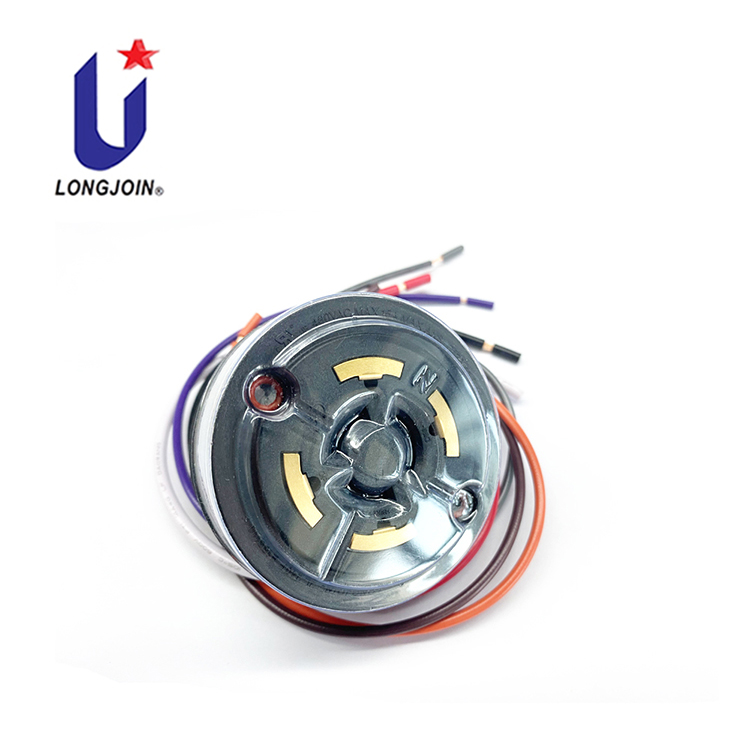

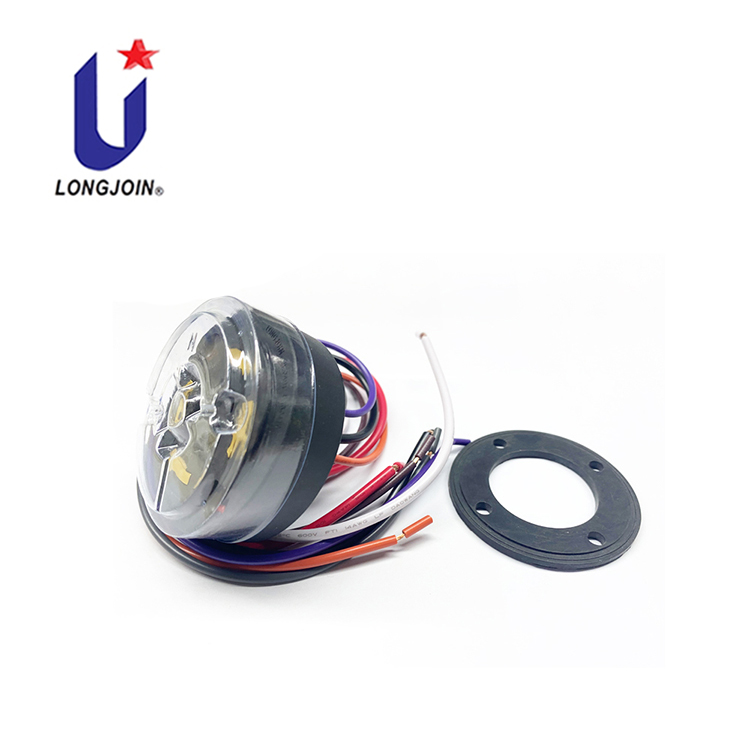

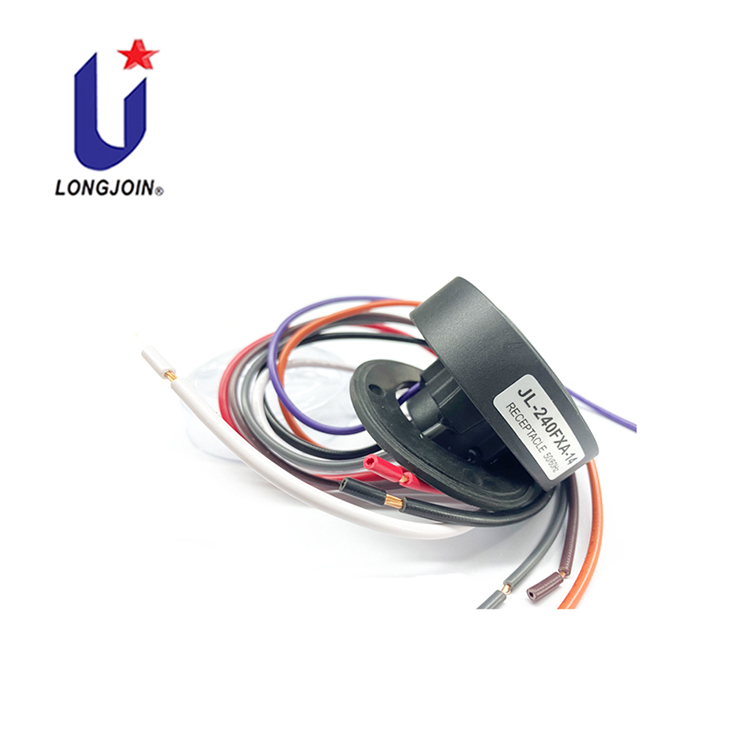

JL-240F-Waterproof Twist-lock Dimming receptacle (NEMA 7P/5P)

Product Summary

All the JL-240F series photocontrol receptacles were designed for the lanterns thoseintended to have an ANSI C136.10 receptacle to fit a twist-lock photocontrol. This seriesconform newly published ANSI C136.41 to allow a LED lamp multi-controlled through the receptacle. This series offers 2 or 4 gold-plated low voltage pads on the top surface to fit photocontrol has ANSI C136.41 conforming spring contacts, and offers 2 or 4 wiring leads at rear side for signal connection. Especially, JL-240F offers screw hole O-rings while internally and externally sealed with silicone glue, to approach extreme waterproof feature.

Features

 Body made from polybutylene terephthalate
 Contacts made from phosphor bronze
 Gold pad made from Nickel plated phosphor bronze with gold plating per ASTM B 588
 Silicone gasket offered
 Extra waterproof performance enhanced
