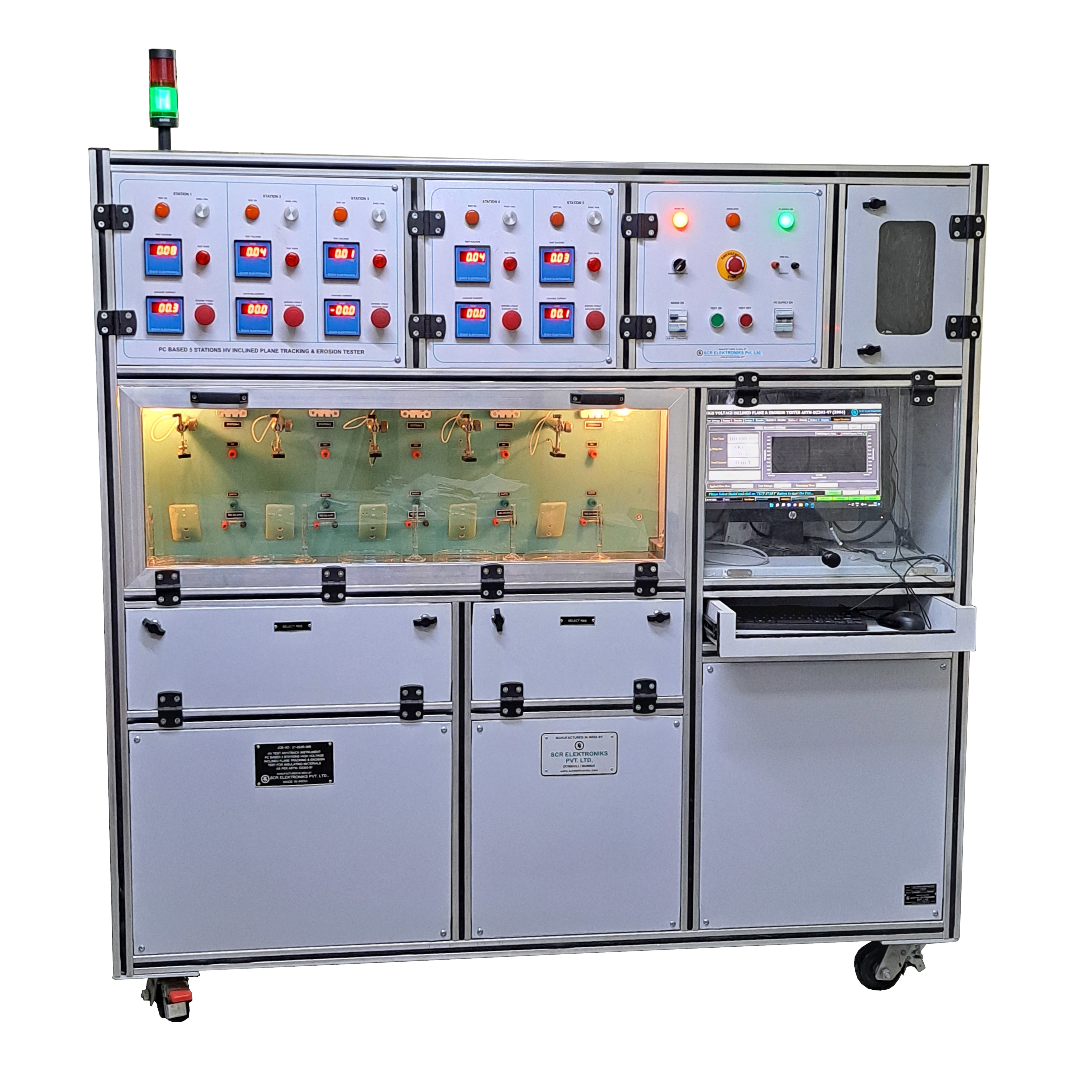

1. Two Stations High Voltage Inclined Plane Tracking and Erosion Tester - With PC Data logging

Features:

1.  PC Operated through NI DAQ OR SCR make DAQ system with LabVIEW software.

2. Specially designed electrodes as per product under test

3. Lighting arrangement in test chamber.

4.  Facility to easily calibrate the system for voltage as well as time calibration.

5.Seven segment LED display for voltage and current indication.

 PC Datalogging comprises of:

1. •          PC based Software: This is useful for auto selection of Type of Test, Ranges and sequence from PC (through RS 232 C Port or Ethernet).
2.


       This Software (developed in NI LabVIEW environment) provides the data acquisition on PC.

       Software features include user hierarchy and password protection, preconfigurable test recipes and setting, automatic and quick

  s   selection of a test recipe with auto-upload of values, actual test and result screens with waveforms, test reports exportable to excel   formats, diagnostic checking of the test bench system, etc.

Specifications:

1. Input supply : 1 phase 230 V AC, 50hz

2. Output voltage : Regulated 100 V   to 7500V, @100mA AC  programmable.

3. Series ballast selection – 1k, 10k,20k and 50k with link – 2 Sets.

4. Tripping current setting : 60 mA

5. Elctrode system : Stainless still material – 2 Sets.

6. Angle of inclination : 45 deg.

7. Fixture arrangement: Made for flat test specimen as well as for various sizes of cable – 2 Sets.

8. Liquid deliver capacity: 0.075 ml/min to 0.900 ml/min, Programmable

9. Test chamber : UV protected Glass door with door interlock.

10.Enclosure : Built with aluminum profile and MS covers with powder coating.

11. Test Chamber : 60cm X 40cm X 31.5cm (L X H X D)
