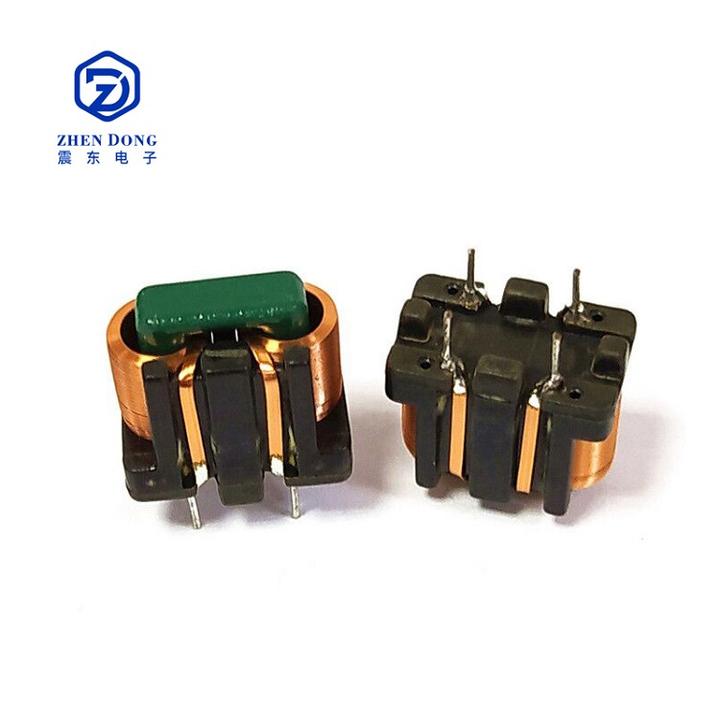

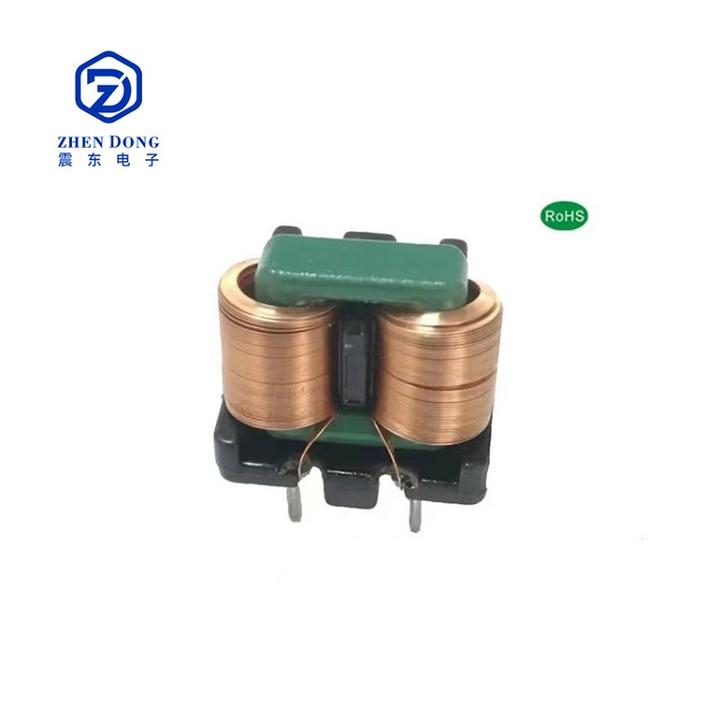

Flat Line Common Mode Inductor SQ1515 20mh 0.13*1.0 Wire Diameter Common Mode Filter Inductor

Type	Common mode choke
Application	Automotive Television and audio equipment
Model Number	SQ1515-20MH
Place of Origin	Guangdong, China
Brand Name	Zhendong
D/C	Customized
Brand	OEM available
Supplier Type	manufacturer
Tolerance	20%
Operating Temperature	-40℃~+125℃
Rated Power	Standard
Package Type	DIP
Resistance Tolerance	M
Temperature Coefficient	customized
Resistance	customized
Media Available	customized
Frequency - Self Resonant	Standard
Features	customized
Inductance	15mh
Q @ Freq	Standard
Mounting Type	DIP
Inductance - Connected In Parallel	customized
Inductance - Connected In Series	customized
Current Rating - Parallel	customized
Current Saturation - Parallel	customized
Current Saturation - Series	customized
DC Resistance (DCR) - Parallel	customized
DC Resistance (DCR) - Series	customized
Shielding	unshieled
Material - Core	ferrite
Current Rating (Amps)	standard
Current - Saturation	standard
DC Resistance (DCR)	standard
Item	Common Mode Inductor
OEM	Available
Advantage	Competitive price
Certification	RoHs ISO9001
Price Term	EXW,FOB,DDP,CIF,CNF
Shipping	UPS,DHL,FEDEX,TNT
Delivery Time	7-15days
Packing	Plastic Tray +Carton Box
Name	Common Mode Chock
Selling Units:	Single item
Single package size:	XX cm
Single gross weight:	kg

Product Description: Flat Line Common Mode Inductor SQ1515 - 20mH, 0.13*1.0mm Wire Diameter

Introducing the SQ1515 Flat Line Common Mode Inductor

Unlock the power of superior electromagnetic interference (EMI) suppression with the Flat Line Common Mode Inductor SQ1515, meticulously designed and engineered by Qingyuan Zhendong Electronic Technology Co Ltd. With its exceptional performance characteristics, the SQ1515 inductor is an essential component for a wide range of applications requiring reliable filtering and signal integrity.

Key Features:

-

Inductance Value

: The SQ1515 boasts an impressive inductance value of 20mH, ensuring effective noise suppression and maximizing the performance of your electronic devices. This substantial inductance is ideal for applications that demand high-level current filtering without compromising signal clarity.

-

Compact Design

: Featuring a flat line design, the SQ1515 integrates seamlessly into your circuit boards, conserving space and lending itself to higher component density. This innovative form factor allows for easier assembly and layout in various electronic applications.

-

Optimal Wire Specifications

: Constructed with a wire diameter of 0.13*1.0mm, the SQ1515 offers excellent current-carrying capacity while maintaining low DC resistance. This ensures minimal power loss and enhances the overall efficiency of your devices.

-

Common Mode Filtering

: The SQ1515 is engineered specifically for common mode applications, which effectively removes unwanted noise from both the signal and power lines. This feature is essential for ensuring the reliability of sensitive electronic components and preserving the integrity of data transmission in communication systems.

-

High Temperature Resistance

: Designed to operate in a wide range of temperatures, the SQ1515 can withstand challenging environmental conditions, making it ideal for demanding applications such as industrial automation, automotive systems, and consumer electronics.

-

Low Loss Characteristics

: With high-quality materials and precision engineering, this inductor minimizes core losses, providing more efficient operation and longer lifespan in various electronic circuits.

Applications:

The Flat Line Common Mode Inductor SQ1515 is versatile and suited for a myriad of applications, including:

-

Power Supply Filters

: The SQ1515 is an excellent choice for power supply circuits, effectively reducing common mode noise and enhancing overall power integrity.

-

Communication Systems

: In wireless and wired communication systems, this inductor plays a crucial role in minimizing signal degradation, ensuring that data transmission remains robust and reliable.

-

Consumer Electronics

: Whether in televisions, audio equipment, or computers, the SQ1515 enhances audio and video quality by reducing noise interference, making it a preferred option for high fidelity devices.

-

Automotive Electronics

: The SQ1515's durability and noise filtering capabilities make it perfect for use in automotive applications, where electromagnetic compatibility is paramount.

-

Industrial Equipment

: In industrial automation and control systems, the SQ1515 provides critical support for reliable operations in the presence of high-frequency disturbances.

Why Choose SQ1515 from Qingyuan Zhendong Electronic Technology Co Ltd?

Qingyuan Zhendong Electronic Technology Co Ltd is renowned for its dedication to quality and innovation in electronic components. Our commitment to using high-grade materials, rigorous testing, and precise manufacturing processes ensures that the SQ1515 Flat Line Common Mode Inductor meets the highest standards in the industry. Each unit is designed to provide the utmost reliability and efficiency for your electronic systems.

Specifications:

-

Inductance

: 20mH -

Wire Diameter

: 0.13*1.0mm -

Type

: Common Mode Inductor -

Design

: Flat Line -

Temperature Range

: Wide operational range -

Applications

: Power supplies, communication systems, consumer electronics, automotive applications, industrial use

Performance Characteristics:

-

DC Resistance

: Minimized for higher efficiency -

Core Material

: Optimized for low loss

-

Operating Temperature

: Designed to function under extreme conditions

Enhance your electronic designs with the Flat Line Common Mode Inductor SQ1515 from Qingyuan Zhendong Electronic Technology Co Ltd. Experience exceptional performance in noise suppression, increased reliability, and efficiency.

Order Your SQ1515 Today!

Don’t let unwanted electromagnetic interference compromise your electronic devices. Invest in the SQ1515 Flat Line Common Mode Inductor and ensure a high-performance, noise-free operation. Contact us today for availability, bulk orders, and technical support. Our expert team is ready to assist you with any inquiries, providing you with the best solutions for your electronic needs.

---

Incorporate the SQ1515 into your next project and experience the difference in performance with a common mode inductor that stands out in its class.
