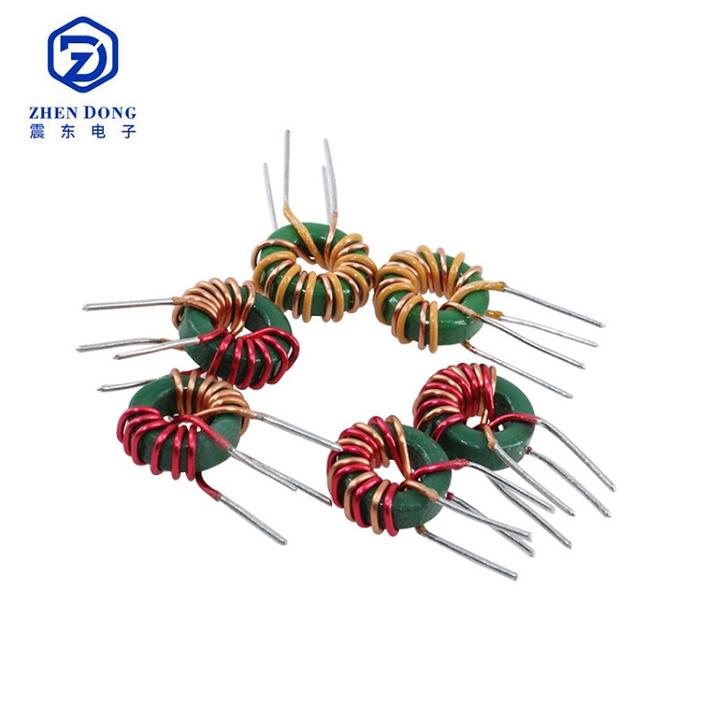

Custom Made Chock 18107 1mh 2mh 22mh Common Mode Inductor Magnetic Ring Inductance Ring Inductor Filtering EMC Coil Inductors

Type	Common mode choke
Application	Automotive
Model Number	18107
Place of Origin	Guangdong, China
Brand Name	Zhendong
D/C	Customized
Brand	OEM available
Supplier Type	manufacturer
Tolerance	20%
Operating Temperature	-40℃~+125℃
Rated Power	Standard
Package Type	DIP
Resistance Tolerance	M
Temperature Coefficient	customized
Resistance	customized
Media Available	customized
Frequency - Self Resonant	Standard
Features	customized
Height - Seated (Max)	standard
Inductance	1mh 2mh 22mh
Q @ Freq	Standard
Mounting Type	DIP
Size / Dimension	22mm*10mm
Height	22mm
Number of Coils	1-100
Inductance - Connected In Parallel	customized
Inductance - Connected In Series	customized
Current Rating - Parallel	customized
Current Saturation - Parallel	customized
Current Saturation - Series	customized
DC Resistance (DCR) - Parallel	customized
DC Resistance (DCR) - Series	customized
Shielding	unshieled
Material - Core	Zinc ferrite
Current Rating (Amps)	10A-20A
Current - Saturation	10A-20A
DC Resistance (DCR)	10mΩ~1Ω
Item	Common Mode Inductor
OEM	Available
Advantage	Competitive price
Certification	RoHs ISO9001
Shipping	UPS, DHL,FEDEX,AIR,SEA
Price Term	EXW,FOB,DDP,CIF,CNF
Delivery Time	10-15days
Name	Common Mode Chock
Packing	Plastic bag

Custom Made Chock 18107 – Tailored Solutions for Optimal Performance

Product Overview:

Introducing the Custom Made Chock 18107, a versatile and efficient solution for your electromagnetic compatibility (EMC) needs. Designed and manufactured by Qingyuan Zhendong Electronic Technology Co Ltd, this magnetic ring inductor is engineered to deliver superior filtering performance across various applications. With its unique inductance ratings of 1mH, 2mH, and 22mH, this common mode inductor ensures exceptional noise reduction and signal integrity.

Key Features:

1.

Tailored Inductance Values:

The Custom Made Chock 18107 comes with specifically engineered inductance values of 1mH, 2mH, and 22mH. This versatility allows you to choose the ideal inductor for your project, optimizing your design requirements and enhancing overall performance.

2.

Superior Magnetic Properties:

Crafted from high-quality magnetic materials, our induction ring provides excellent inductance characteristics, ensuring minimal losses and maximum efficiency. Each inductor is designed to handle a variety of frequencies, making it perfect for a wide range of electronic applications.

3.

Enhanced Filtering Capabilities:

With its common mode configuration, the Custom Made Chock effectively filters electromagnetic interference (EMI) and radio frequency interference (RFI). This feature is crucial in maintaining signal quality and protecting sensitive electronic components from unwanted noise.

4.

Robust Build Quality:

We understand the importance of durability in electronic components. The Custom Made Chock 18107 is built to last, with a robust design that withstands varying environmental conditions. Whether used in automotive, industrial, or consumer electronics, our inductors are engineered for reliability.

5.

Versatile Applications:

This magnetic ring inductor is suitable for a wide range of applications, including power supplies, DC-DC converters, switch-mode power supplies (SMPS), and audio equipment. Its ability to minimize noise makes it an essential component for engineers looking to enhance performance.

6.

Customized Solutions Available:

At Qingyuan Zhendong Electronic Technology Co Ltd, we recognize that every project is unique. We offer customized inductor solutions tailored to your specific requirements. Whether you need different inductance values, sizes, or configurations, we are here to meet your needs.

7.

Easy Installation:

Designed for convenience, the Custom Made Chock 18107 features user-friendly dimensions that allow for easy integration into your existing designs. This makes it an ideal choice for both professional engineers and DIY enthusiasts alike.

8.

Quality Assurance:

Our products undergo rigorous testing and quality assurance processes to ensure consistent performance and reliability. When you choose our inductors, you can trust that you're receiving a product that meets the highest industry standards.

Specifications:

-

Inductance Values:

1mH, 2mH, 22mH -

Type:

Common Mode Inductor -

Material:

High-quality magnetic material -

Applications:

EMC filtering, power electronics, signal integrity enhancements

Why Choose Qingyuan Zhendong Electronic Technology Co Ltd?

As a leading manufacturer in the electronic components industry, Qingyuan Zhendong Electronic Technology Co Ltd is committed to innovation, quality, and customer satisfaction. Our team of experts utilizes the latest technology and manufacturing techniques to produce reliable and efficient inductors that meet the evolving demands of modern electronics.

1.

Expertise and Experience:

With years of experience in designing and manufacturing electronic components, we bring a wealth of knowledge to each product we create. Our engineers work tirelessly to ensure that our products are at the forefront of technology, providing solutions that exceed customer expectations.

2.

Customer-Centric Approach:

We pride ourselves on maintaining strong relationships with our customers. From the initial consultation to after-sales support, our dedicated team is here to provide guidance and support at every step of your project.

3.

Commitment to Sustainability:

We recognize the importance of sustainability in manufacturing. That’s why we implement environmentally friendly practices in our production processes, ensuring that we contribute positively to our planet while delivering top-quality products.

4.

Global Reach:

Our products are used by customers worldwide, reflecting our commitment to quality and reliability. We offer competitive pricing and timely delivery, making us a preferred supplier for businesses across various industries.

Applications in Detail:

-

Power Supplies:

Optimize the performance of power supply systems with our chock, which effectively reduces ripple and noise for improved efficiency. -

DC-DC Converters:

Enhance the operation of converters by ensuring better stability and performance with top-of-the-line filtering capabilities. -

Automotive Electronics:

Whether in infotainment systems or electric vehicle components, our inductors ensure reliable performance under diverse conditions. -

Consumer Electronics:

From audio systems to computers, the Custom Made Chock 18107 helps maintain signal integrity for a better user experience.

Installation and Handling:

Installing the Custom Made Chock 18107 is straightforward. Ensure compatibility with your circuit design, consider the proper orientation for optimal performance, and follow standard handling procedures to avoid damage during installation. For best results, consult with our technical support team for tailored advice during integration.

Final Thoughts:

Invest in the Custom Made Chock 18107 from Qingyuan Zhendong Electronic Technology Co Ltd for all your filtering and noise reduction needs. With a combination of high-quality design, superior performance, and customization options, our inductors stand out as an essential component in advancing your electronic designs. Experience the difference with Qingyuan Zhendong – your trusted partner in electronic solutions.
