Q Switched Fiber Laser Marker-(20-50W)SCF-QS SERIES | |||
Model | SCF-QS20 | SCF-QS30 | SCF-QB50 |
Laser Generator | |||
Laser Power(W) | 20W | 30W | 50W |
Frequency(kHz) | 30-60kHz | 30-60kHz | 50-100kHz |
Pulsed Width(ns) | 130ns | 130ns | 130ns |
Control System | |||
Software | EZCAD2.14.11 | ||
Controller | FBLI-B-V4 | ||
Scanning System | |||
Max. Marking Speed(mm/s) | 6000mm/s (12000mm/s Optional) | ||
Max. Marking Size (mm) | 150*150mm(70*70, 100*100mm Optional) | ||
Others | |||
Power Supply | 110V/220V Optional | ||
Cable Length | 3M (4/5M Optional) | ||
Adjustable Z Lift Travel | 250mm | ||
Cooling Method | Air Cooling | ||

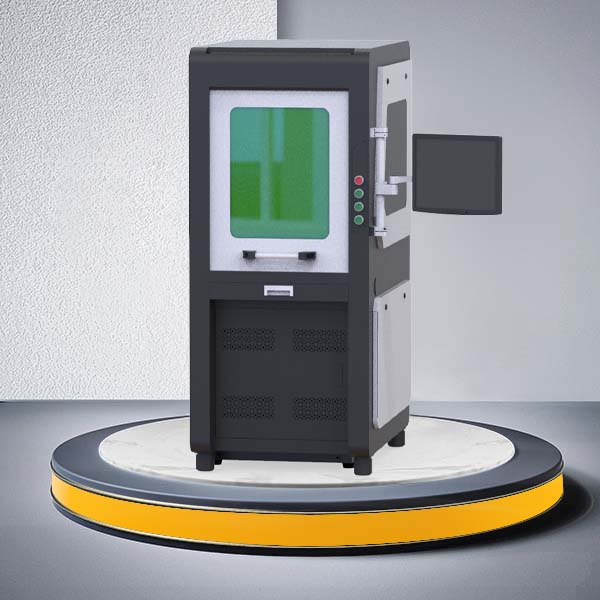

The Small Closed Fiber Laser Marking Machine is a compact, high-performance solution designed for precision and efficiency in metal engraving. Its enclosed structure ensures a clean and safe working environment, making it ideal for small businesses, workshops, and laboratories where space is limited. Despite its small size, this machine delivers exceptional marking quality on a wide range of metals, including stainless steel, aluminum, brass, and more.
Equipped with advanced fiber laser technology, this Laser Marking machine offers high-speed, high-precision engraving with long-lasting marks, even on tough metal surfaces. The fiber laser provides excellent beam quality, ensuring deep and fine engraving without compromising material integrity.
