Colchester Triumph VS2500 lathe for sale
Category
Machinery
Sub-Category
Engineering & Construction Machinery
Completed orders
0
Price
$3500.00
Delivery Cost
$100.00
Minimum Order
1
pieces
Location
South Africa Drive, Cosmo City, Roodepoort, Johannesburg, South Africa, , ,

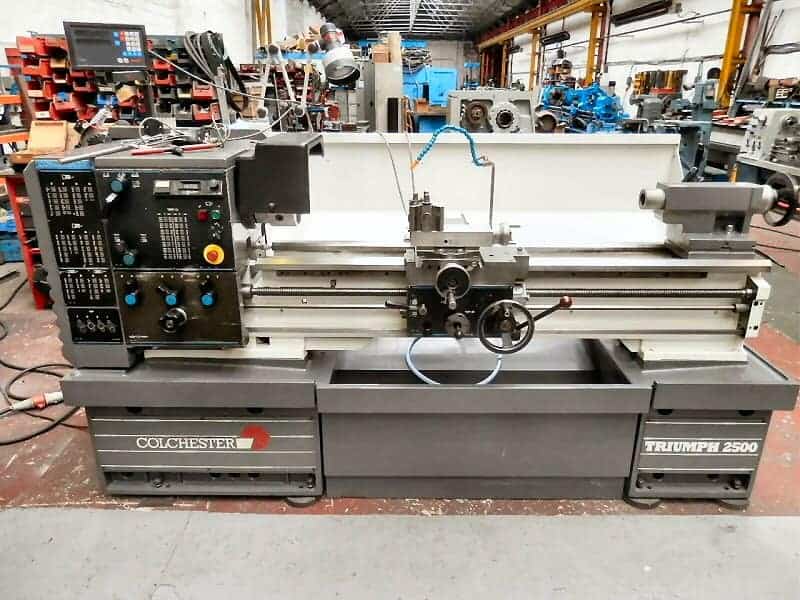

Colchester Triumph VS2500 lathe for sale
| Swing over bed | 400mm | 15.7″ |
| Swing over cross slide | 246mm | 9.6″ |
| Height of centres | 195mm | 7.7″ |
| Swing in gap | 585mm | 23″ |
| Gap width from faceplate | 165mm | 6.5″ |
| Bed length | 1270mm | 50″ |
| Distance between centres | 1270mm | 50″ |
| SPINDLE | ||
| Spindle nose | D1 – 6 Camlock | D1 – 6 Camlock |
| Taper in spindle nose bush | No 4 MT | No 4 MT |
| Spindle bore | 54mm | 2.1″ |
| Maximum spindle speed | 2500 rpm | 2500 rpm |
| Spindle speed ranges | ||
| Low | 14 – 300 rpm | 14 – 300 rpm |
| Medium | 36 – 830 rpm | 36 – 830 rpm |
| High | 109 – 2500 rpm | 109 – 2500 rpm |
| Maximum spindle motor power | 7.5kW | 10 HP |
| Number of Imperial Pitches | 56 | 56 |
| Range of Imperial Pitches | 2 – 56 TPI | 2 – 56 TPI |
| Number of Diametral Pitches | 20 | 20 |
| Range of Diametral Pitches | 8 – 56 DP | 8 – 56 DP |
| Number of Metric Pitches | 51 | 51 |
| Range of Metric Pitches | 0.2 – 14mm Pitch | 0.2 – 14mm Pitch |
| Number of Module Pitches | 20 | 20 |
| Range of Module Pitches | 0.2 – 3.5 MOD | 0.2 – 3.5 MOD |
| TAILSTOCK | ||
| Tailstock quill taper | No 5 MT | No 5 MT |
Tailstock quill travel Follow our link : https://fenixindustrial.co.za/product/colchester-triumph-vs2500-lathe/ | 145mm | 5.7″ |
