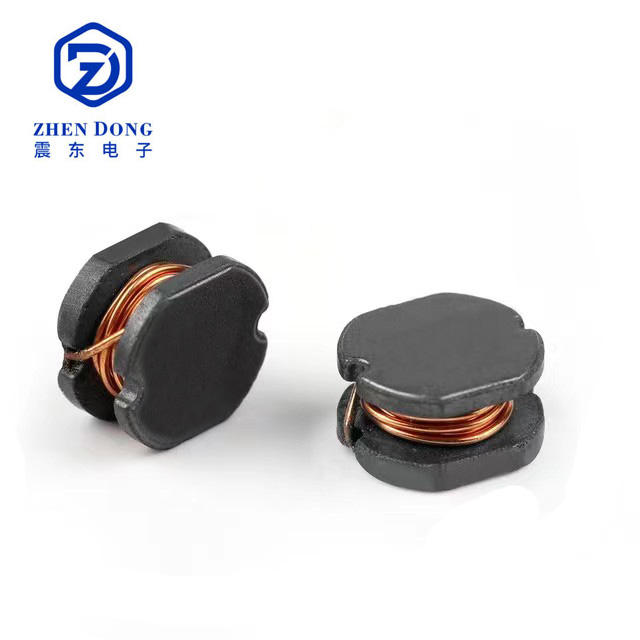

Cheap High Quality SMD Inductor CD43 4.5*4*3.2 150M 15uh Smd Cd Power Inductor Coil With CE RoHS

Type	unshielded power inductor
Application	LED Lighting pcba led tv pcba
Model Number	CD43-150M
Place of Origin	Guangdong, China
Brand Name	Zhendong
D/C	Customized
Brand	OEM available
Supplier Type	manufacturer
Tolerance	20%
Operating Temperature	-40℃~+125℃
Rated Power	1w
Package Type	SMD
Resistance Tolerance	M
Temperature Coefficient	customized
Resistance	customized
Media Available	customized
Frequency - Self Resonant	1MHZ-1GHZ
Features	Ferrite
Height - Seated (Max)	Unshielded
Inductance	15uh
Q @ Freq	10-200
Mounting Type	SMT

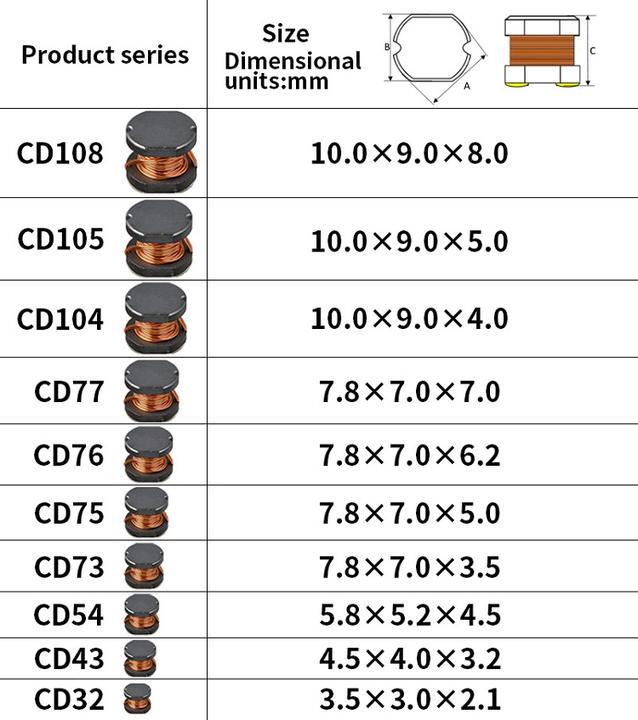

Size / Dimension	4.5*4*3.2mm
Height	3.2mm
Number of Coils	customized
Inductance - Connected In Parallel	customized
Inductance - Connected In Series	customized
Current Rating - Parallel	customized
Current Saturation - Parallel	customized
Current Saturation - Series	customized
DC Resistance (DCR) - Parallel	customized
DC Resistance (DCR) - Series	customized
Shielding	unshieled
Material - Core	ferrite
Current Rating (Amps)	standard
Current - Saturation	0.92A
DC Resistance (DCR)	0.24
Item	Inductor
Advantage	Competitive price
Certification	CE RoHs ISO9001:2008
OEM	Available
Shipping	UPS, DHL,FEDEX,AIR,SEA
Price Term	EXW,FOB,DDP,CIF
Name	CD smd inductor
Delivery Time	10-15days

Product Description: Cheap High Quality SMD Inductor CD43 4.5*4*3.2 150M 15uh - Your Reliable Power Inductor Solution!

Introducing the Cheap High Quality SMD Inductor CD43, a premium power inductor designed specifically for today's sophisticated electronic applications. Manufactured by Qingyuan Zhendong Electronic Technology Co. Ltd., this indelible component combines high performance with affordability, making it the ideal choice for a wide array of electronic devices.

Key Features:

-

Small Footprint

: Measuring just 4.5mm x 4mm x 3.2mm, the CD43 SMD inductor boasts a compact design that fits seamlessly within dense circuit layouts. Its small size allows for easy integration in products where space is at a premium.

-

High Inductance Value

: With a rated inductance of 15µH, this inductor effectively manages current fluctuations, making it suitable for power conversion and filtering applications. The inductance value ensures efficient energy usage in various electronic systems.

-

150mA Current Rating

: The CD43 SMD inductor can handle up to 150mA of current, ensuring reliable performance in demanding applications. This high current capability allows it to support power supplies, DC-DC converters, and other high-performance electronic projects.

-

Excellent Efficiency

: Designed for minimal energy loss, the CD43 ensures high efficiency levels across a variety of applications. Its optimized construction promotes reduced heat generation and improved reliability.

-

Compliance and Safety

: The CD43 comes with CE and RoHS certifications, ensuring it meets international safety and environmental standards. This certification reassures users that they are choosing a product that is safe for both their applications and the environment.

-

Versatile Applications

: This SMD inductor is perfect for numerous applications, including but not limited to power management circuits, LED drivers, communication devices, consumer electronics, and industrial machinery. Whether you’re designing a new smart device or maintaining existing equipment, the CD43 is an integral component.

Why Choose Qingyuan Zhendong Electronic Technology Co. Ltd.?

When it comes to electronic components, quality and reliability are paramount. Qingyuan Zhendong Electronic Technology Co. Ltd. is recognized for its commitment to excellence and innovation. With years of experience in the industry, the company has built a reputation for producing high-quality electronic components that meet the needs of modern manufacturers.

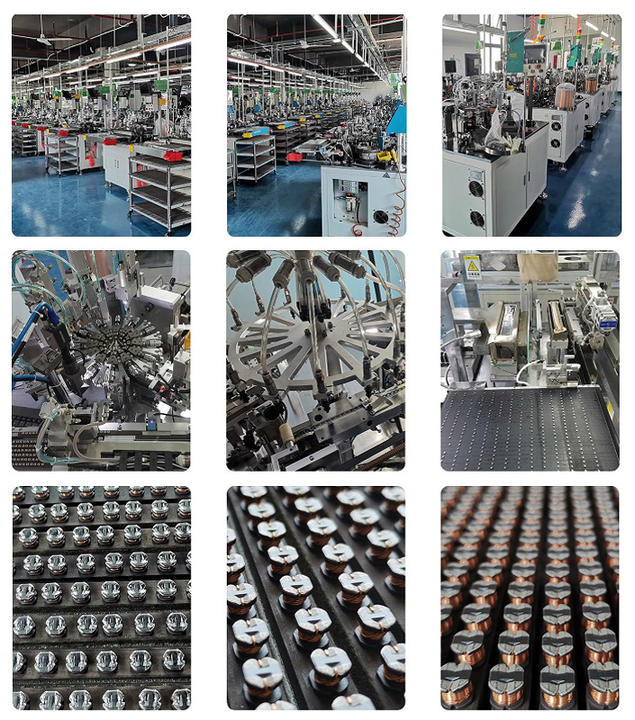

By choosing the CD43 SMD inductor, you are investing in a product that adheres to the highest standards of quality assurance. Our manufacturing processes utilize state-of-the-art technology, and we adhere to strict quality control measures to guarantee that every inductor performs flawlessly.

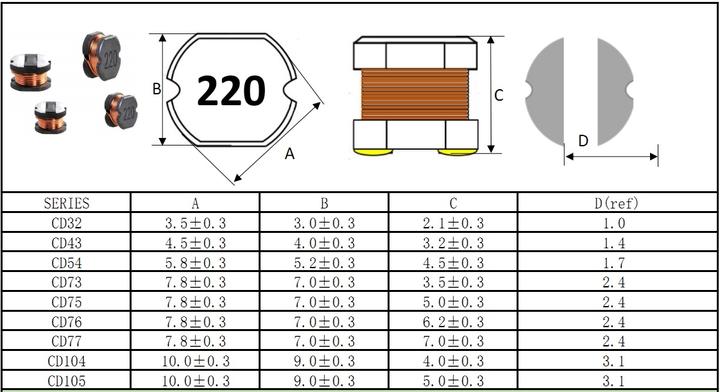

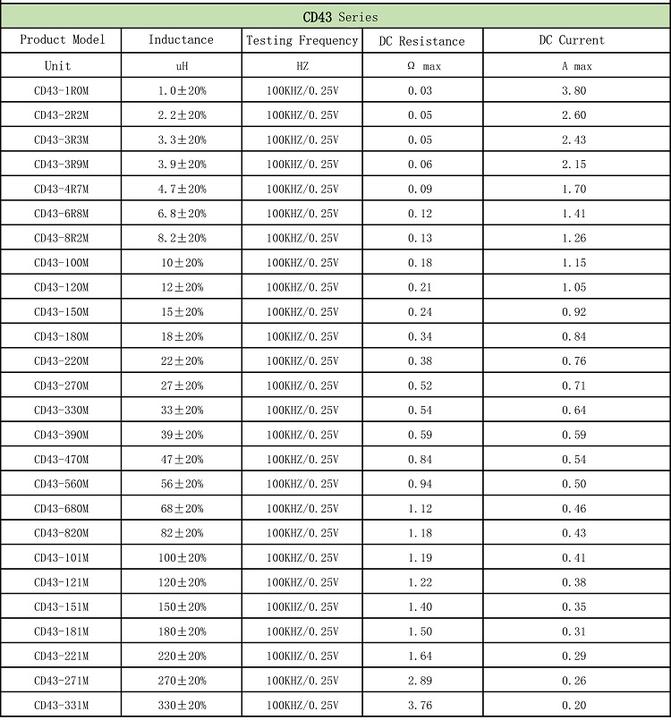

Technical Specifications:

-

Inductance

: 15µH -

Dimension

: 4.5mm x 4mm x 3.2mm -

Rated Current

: 150mA -

DCR (Direct Current Resistance)

: Ultra-low resistance for improved performance -

Temperature Range

: Available for various temperature environments -

Material

: Made from high-quality magnetic materials for optimal efficiency

Applications of CD43 SMD Inductor:

-

DC-DC Converters

: Improves the efficiency and reliability of power converters, making it a go-to choice for power management designs. -

LED Drivers

: Ensures consistent performance and stability while driving LED circuits. -

Power Supply Circuits

: Essential in smoothing out fluctuations and providing stable power to sensitive components. -

Mobile Devices

: Ideal for compact applications requiring high performance without sacrificing space. -

Consumer Electronics

: Perfectly complements audio equipment, portable devices, and home appliances.

How to Integrate the CD43 SMD Inductor Into Your Project:

Integrating the CD43 SMD inductor into your electronic design is straightforward. With a simple footprint and an easy mounting method, you can seamlessly incorporate this component into your PCB layout. Take advantage of the detailed datasheet provided to understand the optimum operating conditions and ensure your project runs efficiently.

For best results, consider the following integration tips:

1.

Placement

: Ensure sufficient space around the inductor for heat dissipation and avoid interference with other components. 2.

Circuit Design

: Use appropriate circuit designs that inform the inductor's performance, focusing on inductance and current ratings to leverage its capabilities fully.

3.

Testing

: After integration, conduct thorough testing to confirm that the inductor performs within the desired parameters under varying loads and conditions.

Competitive Pricing:

The Cheap High Quality SMD Inductor CD43 combines affordability and performance without compromising quality. Our competitive pricing structure allows you to source high-quality components without stretching your budget. Whether you're a manufacturer scaling production or an engineer prototyping new ideas, the CD43 is an economical choice that doesn’t sacrifice performance.

Ordering Information:

Available for bulk orders, the CD43 SMD inductor can be purchased through various channels including direct inquiry, online marketplaces, and electronic component distributors. For custom requirements or to discuss bulk pricing and availability, reach out to our sales team today.

---

Explore the potential of your electronic designs with Qingyuan Zhendong Electronic Technology Co. Ltd.'s Cheap High Quality SMD Inductor CD43. Experience unmatched performance, robustness, and value that redefine what you expect from electronic components.
