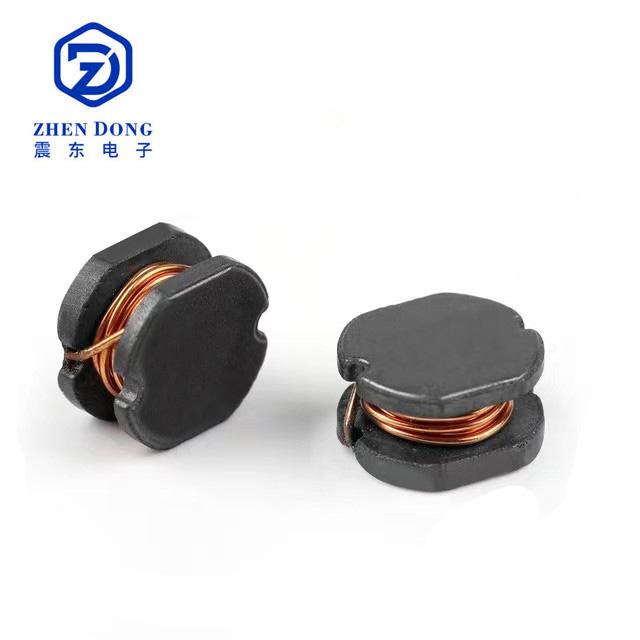

CD54 Series SMD Power Inductor Coil 22uH Ferrite Drum Core Surface Mount Unshielded Chip Choke Inductor Wholesale Factory Customization
Category
Electronic Components & Supplies
Sub-Category
Accessories & Parts
Completed orders
0
Price
$0.00
Delivery Cost
$0.00
Minimum Order
1
pieces
Location
The 1-5 Floors of Building L23A, and the 5th Floor of Building L18, Tianan Zhigu Industrial Park, No.18 Chuangxing Avenue, Hi-Tech Industrial Development, Qingyuan, Guangdong, China
| Type | Inductor Surface Mount |
| Application | LED Lighting |
| Model Number | CD54 |
| Place of Origin | Guangdong, China |
| Brand Name | ZHENDONG |
| D/C | Customized |
| Brand | OEM available |
| Supplier Type | manufactory of power inductor |
| Tolerance | 5%,10%,20% |
| Operating Temperature | -40℃~+125℃ |
| Rated Power | 1W |
| Package Type | SMT |
| Resistance Tolerance | J,K,M |
| Temperature Coefficient | customized |
| Resistance | customized |
| Media Available | customized |
| Frequency - Self Resonant | 1MHZ-1GHZ |
| Features | ferrite |
| Height - Seated (Max) | Unshielded |
| Function | EMC |
| Inductance | 22uH |
| Q @ Freq | 10-200 |
| Mounting Type | Horizontal |
| Package / Case | Expoxy |
| Size / Dimension | 5.8*5.2*4.5mm |
| Height | 4.5mm |
| Number of Coils | customized |
| Inductance - Connected In Parallel | customized |
| Inductance - Connected In Series | customized |
| Current Rating - Parallel | customized |
| Current Saturation - Parallel | customized |
| Current Saturation - Series | customized |
| DC Resistance (DCR) - Parallel | customized |
| DC Resistance (DCR) - Series | customized |
| Shielding | unshieled |
| Material - Core | Copper Wire + Ferrite Core |
| Current Rating (Amps) | customized |
| Current - Saturation | customized |
| DC Resistance (DCR) | customized |
| Item | unshielded chip power inductor |
| Certification | REACH,RoHs, UL, CE |
| Advantage | factory price and delivery quickly |
| Keyword | smt power inductor |
| MOQ | 100pcs |
| Shipping | DHL, FEDEX,UPS,AIR,SEA |
| Customized Service | Available |
| Selling Units: | Single item |
| Single package size: | XX cm |
| Single gross weight: | kg |
