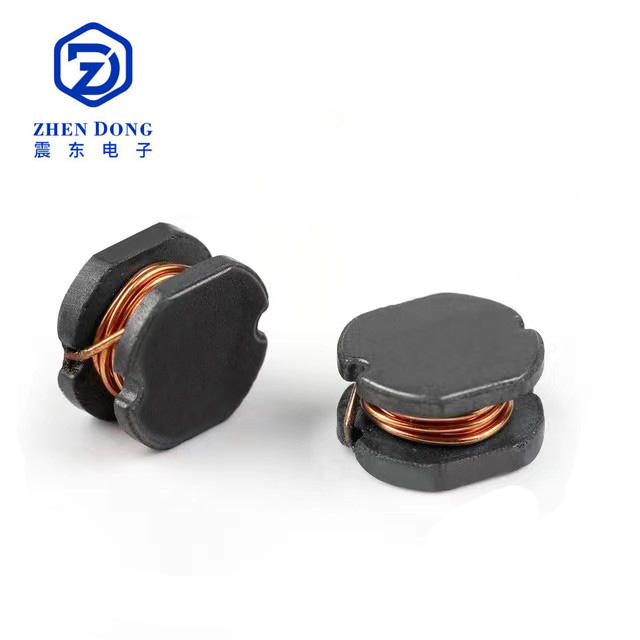

CD43 4.5*4*3.2 8R2M 8.2uh Unshielded Component SMD Chip Ferrite Inductor Manufacture Standard Code Power Inductors

Type	unshielded power inductor
Application	LED Lighting pcba led tv pcba
Model Number	CD43-8R2M
Place of Origin	Guangdong, China
Brand Name	Zhendong
D/C	Customized
Brand	OEM available
Supplier Type	manufacturer
Tolerance	20%
Operating Temperature	-40℃~+125℃
Rated Power	1w
Package Type	SMD
Resistance Tolerance	M
Temperature Coefficient	customized
Resistance	customized
Media Available	customized
Frequency - Self Resonant	1MHZ-1GHZ
Features	Ferrite
Height - Seated (Max)	Unshielded
Inductance	8.2uh
Q @ Freq	10-200
Mounting Type	SMT

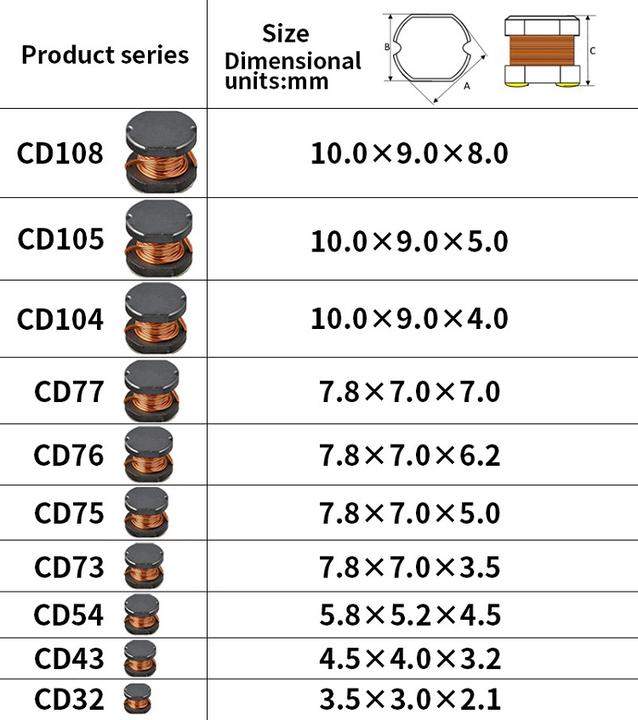

Size / Dimension	4.5*4*3.2mm
Height	3.2mm
Number of Coils	customized
Inductance - Connected In Parallel	customized
Inductance - Connected In Series	customized
Current Rating - Parallel	customized
Current Saturation - Parallel	customized
Current Saturation - Series	customized
DC Resistance (DCR) - Parallel	customized
DC Resistance (DCR) - Series	customized
Shielding	unshieled
Material - Core	ferrite
Current Rating (Amps)	standard

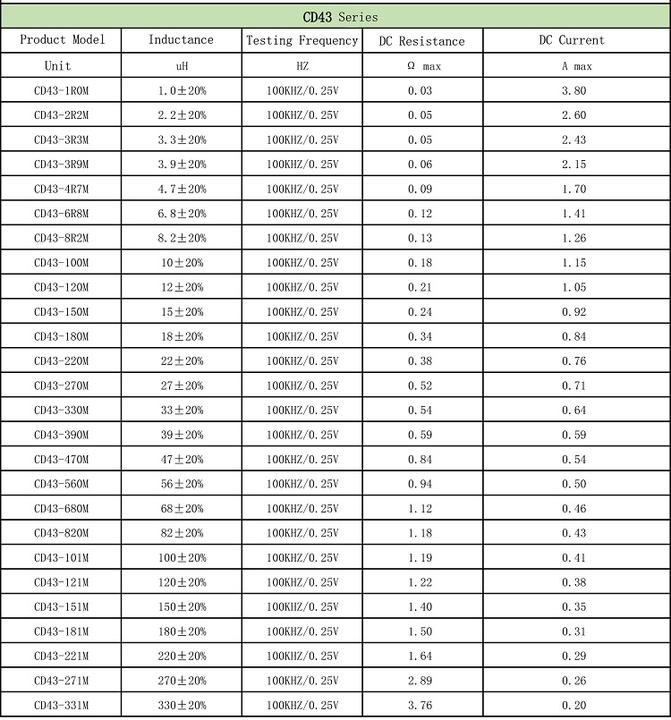

Current - Saturation	1.26A
DC Resistance (DCR)	0.13
Item	Inductor
Advantage	Competitive price
Certification	CE RoHs ISO9001:2008
OEM	Available
Shipping	UPS, DHL,FEDEX,AIR,SEA
Price Term	EXW,FOB,DDP,CIF
Name	CD smd inductor
Delivery Time	10-15days

Introducing the CD43 4.5*4*3.2 8R2M 8.2uh Unshielded SMD Chip Ferrite Inductor - a cutting-edge power inductor from Qingyuan Zhendong Electronic Technology Co., Ltd. Designed with precision and manufactured to the highest standards, this component is ideal for a wide range of electronic applications, including power supply circuits, audio devices, and various consumer electronics.

Key Features:

-

Compact Dimensions

: The CD43 inductor measures just 4.5mm x 4mm x 3.2mm, making it an ideal choice for modern compact electronic designs. Its small footprint allows for easier integration into high-density circuit boards, optimizing space without compromising performance.

-

Inductance Value

: With an inductance value of 8.2 microhenries (µH), this inductor facilitates efficient energy storage and conversion, ensuring stable power supply in critical electronic applications. This balance of size and performance positions the CD43 as a trusted choice among engineers and designers.

-

Unshielded Design

: The unshielded configuration of the CD43 allows for minimal magnetic interference with nearby components, making it a perfect fit for sensitive applications. This design feature ensures reliable performance in environments where electromagnetic interference is a concern.

-

High-Quality Ferrite Core

: Constructed with premium ferrite material, this inductor offers high permeability and low core losses, maximizing overall efficiency. This quality promotes effective energy transfer and reduced heat generation, contributing to the longevity of your electronic systems.

-

Industry Standard

: The CD43 complies with international manufacturing standards, ensuring that it meets rigorous quality and reliability requirements. This makes it a dependable choice for industrial applications and commercial products alike.

Applications:

The CD43 8.2µH Ferrite Inductor is versatile and widely applicable across various fields, including:

-

Power Supplies

: Ideal for DC-DC converters and voltage regulators, the CD43 inductor helps maintain steady voltage levels and enhances system efficiency.

-

Consumer Electronics

: This component is perfect for use in audio equipment, televisions, and computer peripherals where stable power delivery is critical for performance.

-

Telecommunication Equipment

: The high inductance value and compact size make the CD43 suitable for RF and communication devices, ensuring clear signal transmission and reception.

-

Automotive Applications

: With growing demand in the automotive sector for compact and efficient components, the CD43 can be implemented in several automotive electronics, including battery management systems and infotainment units.

Benefits:

-

Enhanced Efficiency

: The advanced ferrite core design minimizes energy losses during operation. By choosing the CD43 inductor, manufacturers can improve the overall efficiency of their products, translating into lower operating costs and extended system longevity.

-

Space-Saving Solution

: Its compact dimensions provide engineers with the flexibility to design smaller, more efficient circuits that fit modern device criteria without sacrificing performance.

-

Reliability and Durability

: Manufactured under strict quality control measures at Qingyuan Zhendong Electronic Technology Co., Ltd., the CD43 inductor is built to last. With high thermal stability, this component performs consistently across various temperatures and operating conditions.

-

Easy to Integrate

: The SMD (Surface Mount Device) design allows for straightforward installation on printed circuit boards, facilitating faster assembly and reduced manufacturing complexities.

Technical Specifications:

-

Inductance

: 8.2 µH -

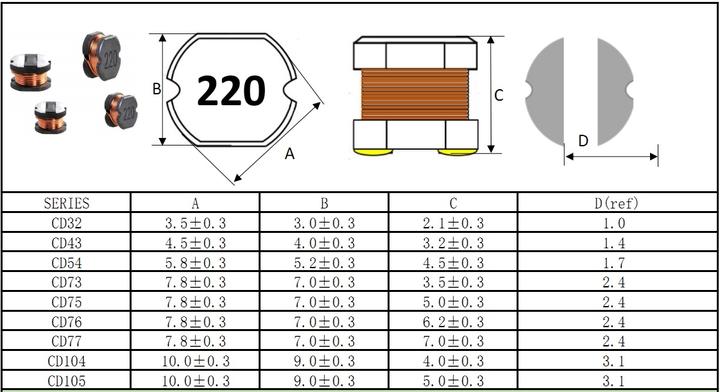

Dimension

: 4.5mm x 4mm x 3.2mm -

Type

: Unshielded SMD Ferrite Inductor -

Standard Code

: 8R2M -

Temperature Range

: -20°C to +85°C (Operation)

-

Magnetic Flux Density

: Optimized for high performance

Why Choose Qingyuan Zhendong Electronic Technology Co., Ltd.?

Qingyuan Zhendong Electronic Technology Co., Ltd. is a recognized leader in electronic components manufacturing. Our commitment to innovation, quality, and customer satisfaction sets us apart in the highly competitive electronics industry. With extensive research and development, our products, including the CD43 8.2µH Ferrite Inductor, are engineered to meet the ever-evolving needs of modern technology.

Ordering Information:

When you choose the CD43 4.5*4*3.2 8R2M 8.2µH Unshielded SMD Chip Ferrite Inductor, you are selecting a reliable component that enhances performance across a variety of applications. Orders can be placed directly through our website, and our customer service team is ready to assist you with any inquiries.

Stay ahead of the curve in the electronics market by incorporating the CD43 inductor into your designs. Whether you are developing cutting-edge consumer electronics, robust automotive systems, or advanced telecommunication devices, the CD43 8.2µH Ferrite Inductor is your go-to solution for excellence in performance and reliability.

---

Discover the difference that precision engineering can make in your electronic projects with the CD43 from Qingyuan Zhendong Electronic Technology Co., Ltd. Transform your designs today with our industry-leading inductor technology.
