5c Collet Square Hex 5C Collet Chuck For Lathe
Product Details
Material: 65Mn
Hardness: clamping part HRC55-60 elastic part HRC40-45
This unit is applicable to all sorts of lathes, which spindle taper hole is 5C, such as automatic lathes, CNC lathes etc.
Accuracy: 0.015mm
Type: Round hole, Square hole, Hex hole,
Mini order quantity: 10pcs
Package: Paper box and plastic box
Order No. | Type | Clamping range | Wt(kg) | Price | |
mm | ln | ||||
5C-01-d | Round | 1-28 | 1/32-1-1/8 | 0.24 | $3.80 |
5C-02-S | Square | 3-19 | 1/8-3/4 | 0.24 | $10.00 |
5C-03-H | Hex | 3-22 | 1/8-7/8 | 0.24 | $10.00 |
A CNC machine collet is a specialized work-holding device designed to securely clamp cutting tools or workpieces during CNC machining operations. Unlike standard chucks, collets provide higher precision and stronger gripping force due to their conical shape and spring-steel structure. They are widely used in milling machines, lathes, drilling centers, and grinding machines, making them a core component of modern precision manufacturing.
For more information please contact HT-TOOLS
Company Rating
Overall Rating
Description Rating
Delivery time
Contact
Professionalism
You may like this

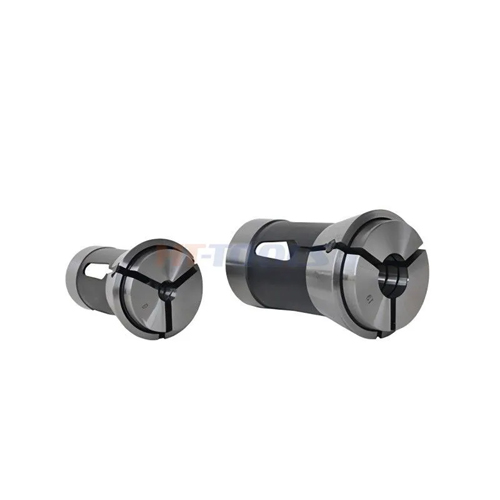

DIN6343 Clamping Collet

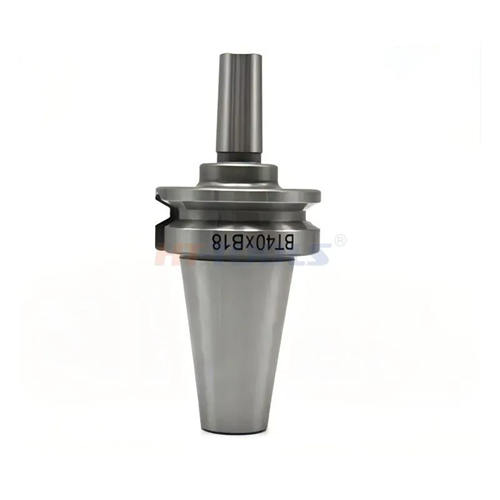

BT Drill Chuck Arbors

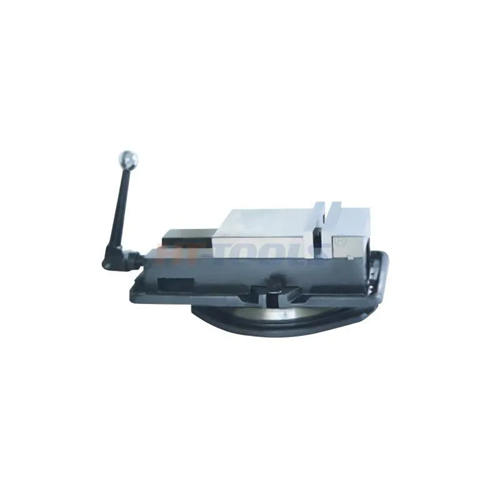

QM ACCU-Lock Precision Machine Vises
