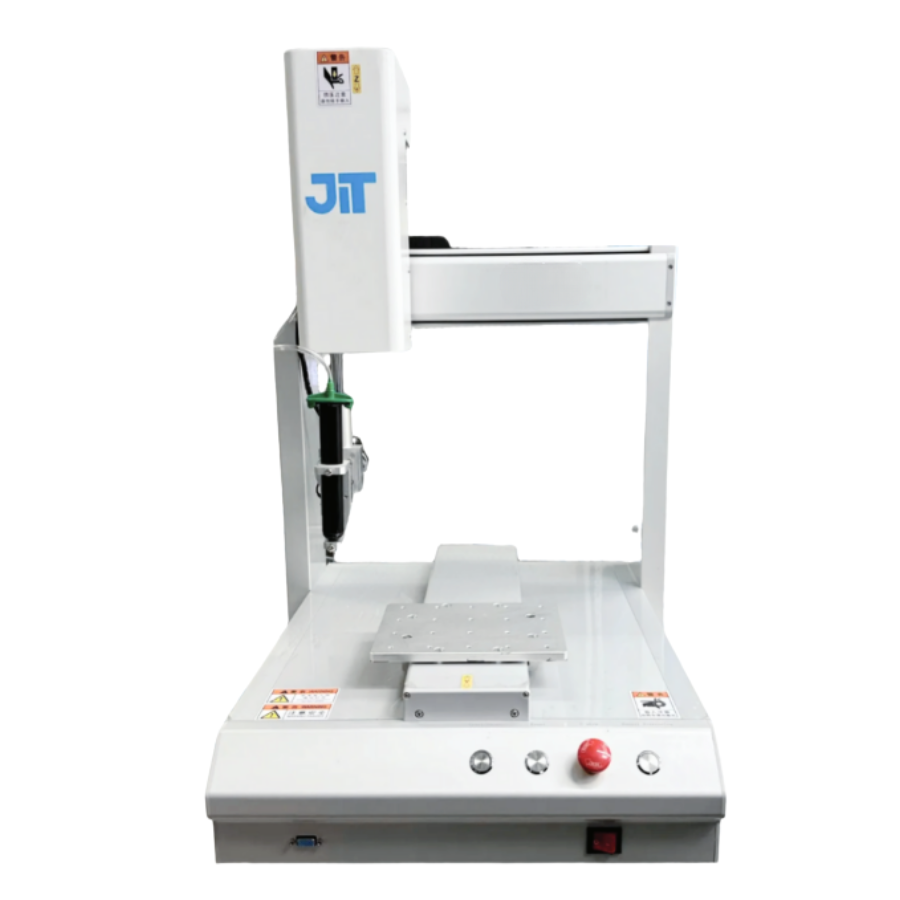

The 5-axis desktop dispensing machine is a specialized device designed for precise glue dispensing on surfaces of electronic components, PCBs, and other high-precision products. With a compact desktop design, it’s easy to install and operate in any production environment. It operates flexibly on the X/Y/Z axis with a large working area (500/500/150mm) and a Z-axis height up to 927mm, enabling it to perform multiple dispensing operations like dotting, straight lines, circles, spirals, and more – all while maintaining a repeatability accuracy of ±0.02mm.

Description

In today’s modern industrial era, industries such as electronics, automation, and precision manufacturing demand high accuracy and efficiency. That’s why the 5-axis desktop dispensing machine has become a smart choice to optimize production lines, save costs, increase speed, and ensure product quality. With outstanding features, this machine is considered the optimal solution for businesses looking to upgrade their technology.

General Introduction

The 5-axis desktop dispensing machine is a specialized device designed for precise glue dispensing on surfaces of electronic components, PCBs, and other high-precision products. With a compact desktop design, it’s easy to install and operate in any production environment.

It operates flexibly on the X/Y/Z axis with a large working area (500/500/150mm) and a Z-axis height up to 927mm, enabling it to perform multiple dispensing operations like dotting, straight lines, circles, spirals, and more – all while maintaining a repeatability accuracy of ±0.02mm.

Key Features

1. Upgraded nozzle system

The machine uses an upgraded nozzle design that eliminates the need to change nozzles when switching adhesives, saving time and improving productivity.

2. Solid aluminum-alloy cast structure

The entire frame is built from one-piece cast aluminum, ensuring durability, excellent heat dissipation, corrosion resistance, and long-term precision stability.

3. Integrated handheld controller with LCD screen

The user-friendly handheld controller with an LCD display allows for easy operation and intuitive control, supporting both teaching mode and graphic input for programming.

4. High-quality stepper motors with optical sensors

Equipped with precision linear guide rails, stepper motors, and optical sensors sourced from Japan and Europe, the machine delivers smooth, stable, and precise movement.

5. Independent triple-axis control

The independent triple-axis control system with one-touch switches provides flexible operation, making the machine highly adaptable and durable for continuous industrial use.

Technical Specifications

Real-World Applications

This machine is designed for various industrial applications, especially in the electronics and high-tech device manufacturing sectors.

 Potting

Protecting electronic components with potting compounds to shield from dust, moisture, and external factors.

 Precise Dispensing

Accurate dotting and path-following glue dispensing for clean and consistent application.

 Sealing

Sealing joints and grooves to prevent leakage, moisture ingress, or for insulation.

 Thermal Management

Applying thermal paste or adhesives for heat dissipation in modules and processors.

 Bonding

Accurate application for strong, secure bonding of components without misalignment.

 Conformal Coating

Applying protective coating to PCBs to prevent corrosion, dust, and moisture damage.

Why Invest in a 5-Axis Dispensing Machine?

• Boost productivity: Continuous and stable operation enhances production efficiency.

• Reduce labor cost: Automation lowers the need for manual labor.

• Exceptional precision: ±0.02mm repeatability ensures top-tier product quality.

• Easy to operate: User-friendly interface – no need for advanced technical skills.

• Versatile applications: Suitable for consumer electronics, medical devices, automotive, and industrial equipment.

——————————
